Filters - Display results

This menu item allows for the graphical display of water flow rates and directions, pressure losses, and flow velocities.

To display the results, information provided by the calculation program SpriCalc is required.

To ensure the display reflects the current status, the calculation has to have been completed beforehand.

For the new calculation method “Variable Viscosity” for flour-free foam concentrate premixes, there are new filters for shear rate and kinematic viscosity.

To clear the filters, the default display has to be selected.

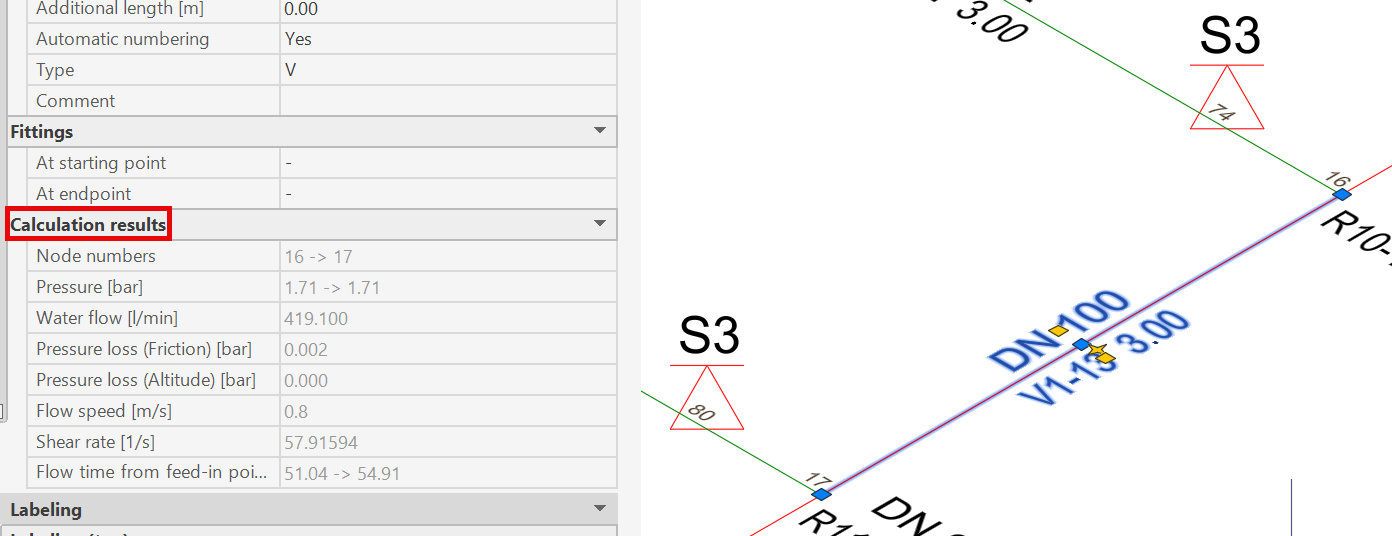

Display of calculation results per pipe/branch pipe in the properties:

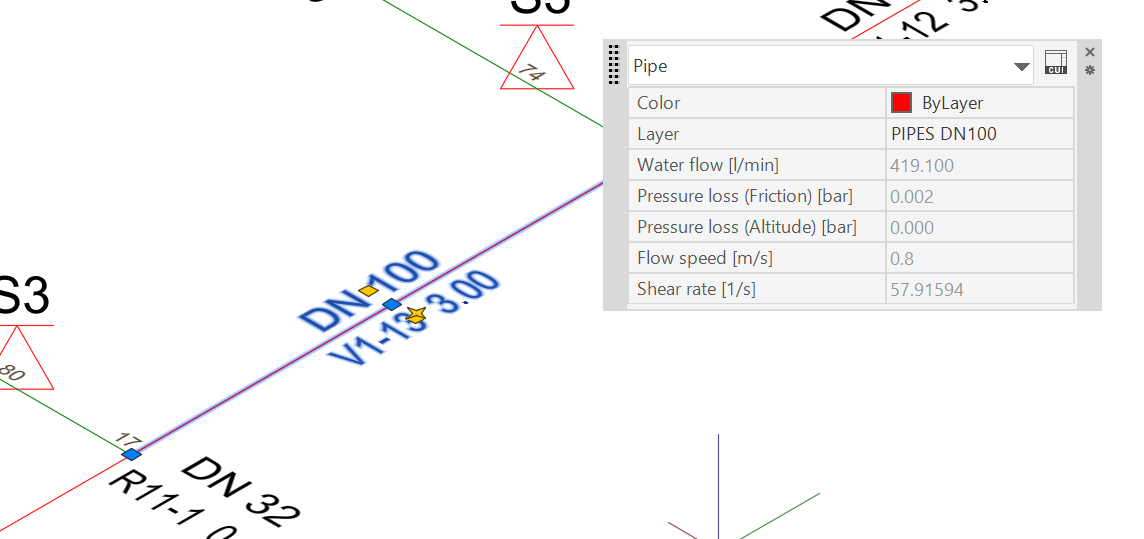

As Quickinfo:

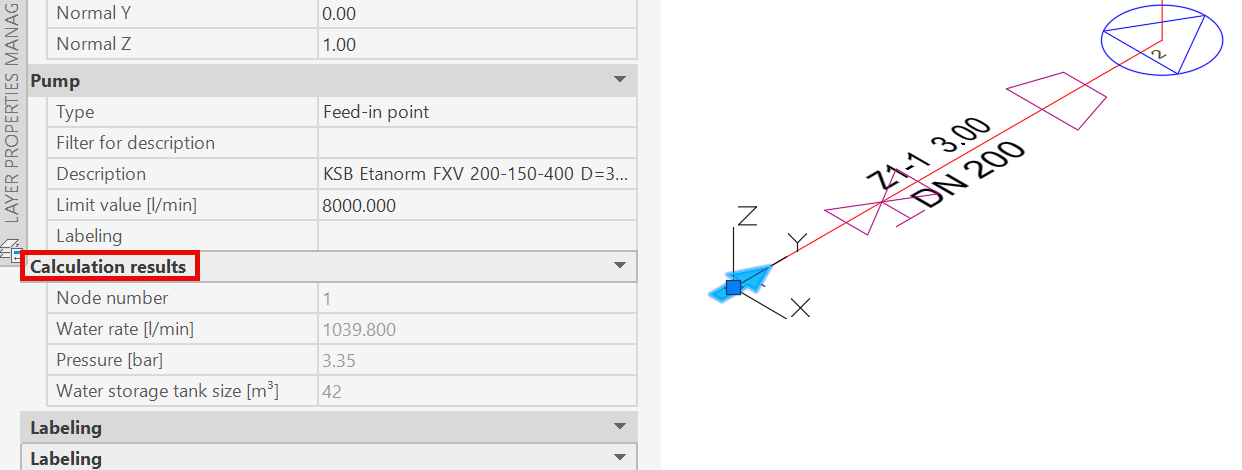

Additional specific calculation results at the feed-in point:

The size of the water tank can only be calculated if the operating time is specified in Project Management/Group.
