Generate a graphical representation of water flow rates and directions, including the calculated values displayed as text on the pipes.


All pipes, branch pipes, and sprinkler supply pipes are colored in different shades according to the water flow rate (l/min), based on a color scale. This scale is the same for all filters.




The colors used for this can be set in the Parameter file/Darst. For all filters, the range is from the lowest calculated value of 0% to the highest value of 100%. Light blue represents the lowest value, and dark red represents the highest value.


The direction of water flow is indicated by an arrow at each Pipe (provided water is flowing through it at all).

Additionally, the least favorable sprinkler is displayed in the color set in the parameter file.

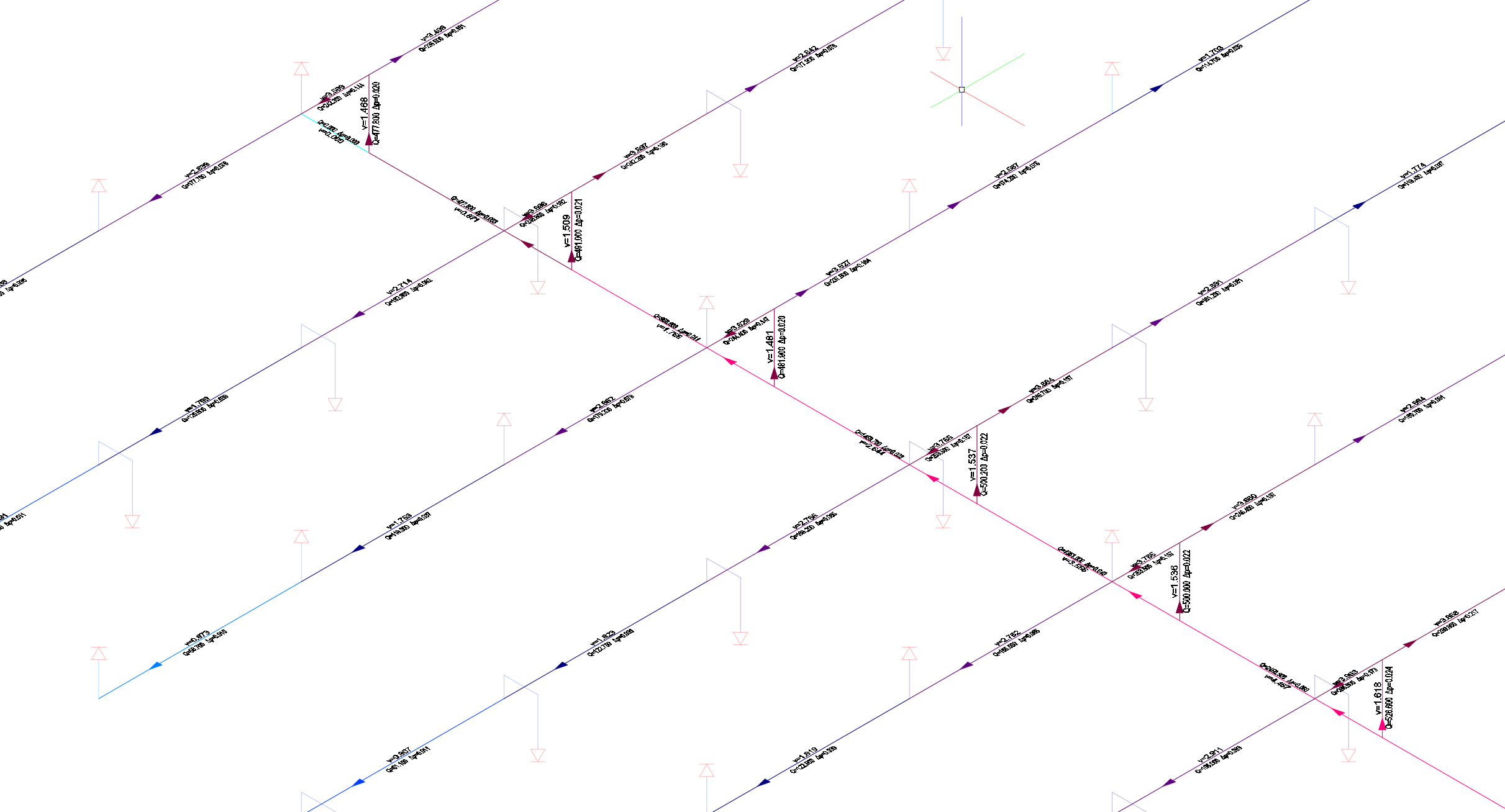

Overview:

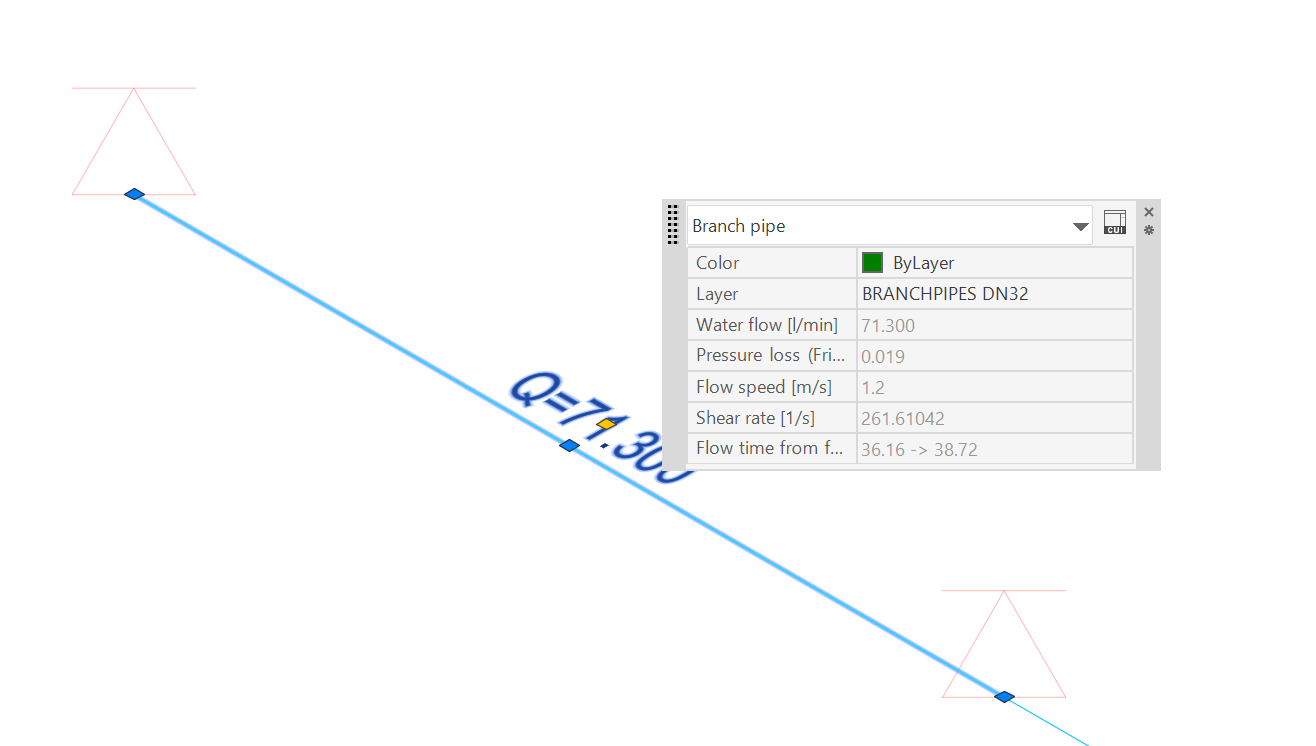

Detail:

Filter labels can be managed via Project Management/Labeling.
