Calculate coefficients

Function: Conversion of equivalent lengths of fittings into K-factors/Kv values for calculations using Variable Viscosity.

For calculations using Variable Viscosity, the fittings and components must be included in the calculation along with their K-factors/Kv values (Power-Law Model).

Existing equivalent lengths of the components can be converted at the click of a button.

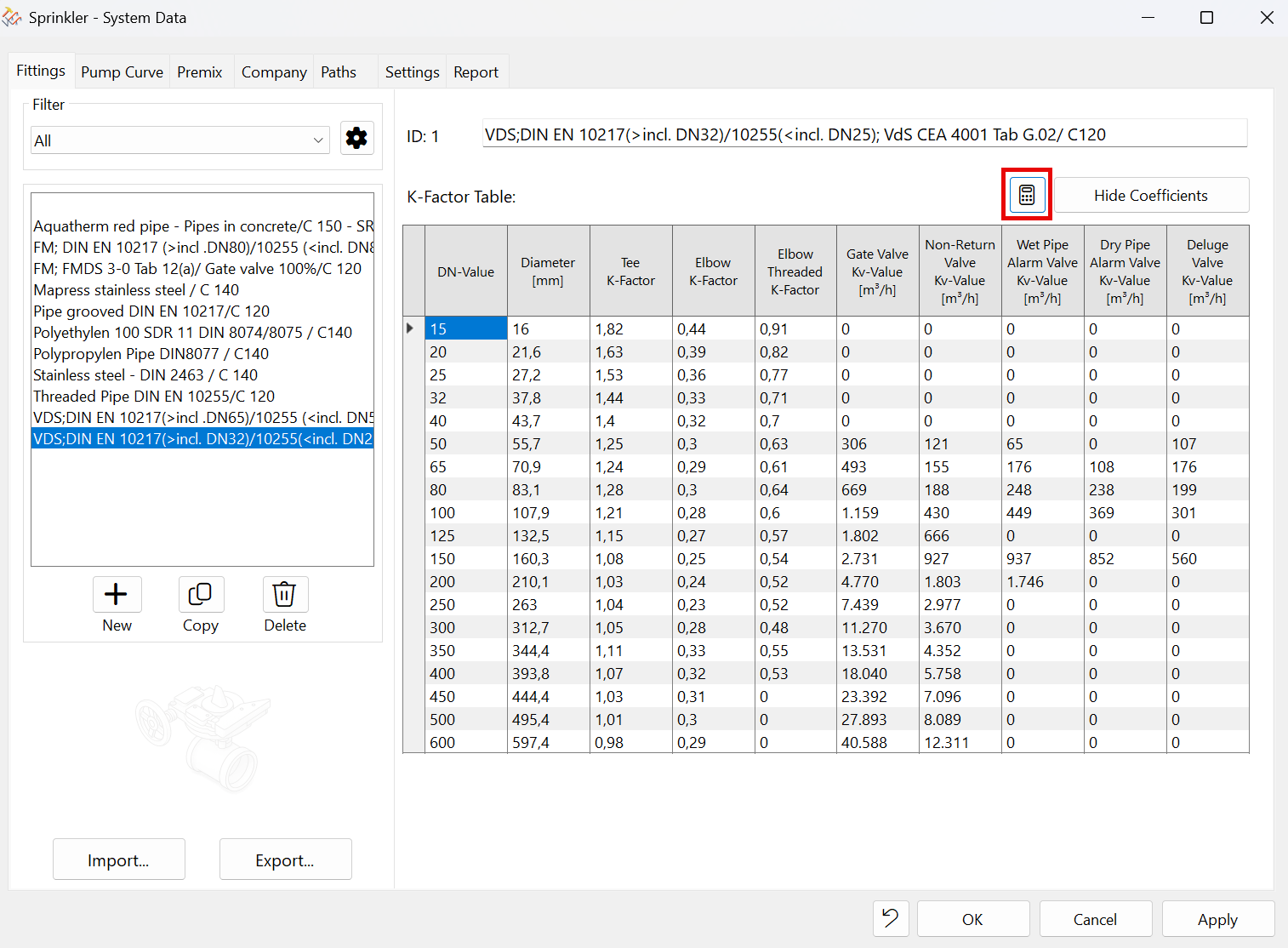

Click to show coefficients:

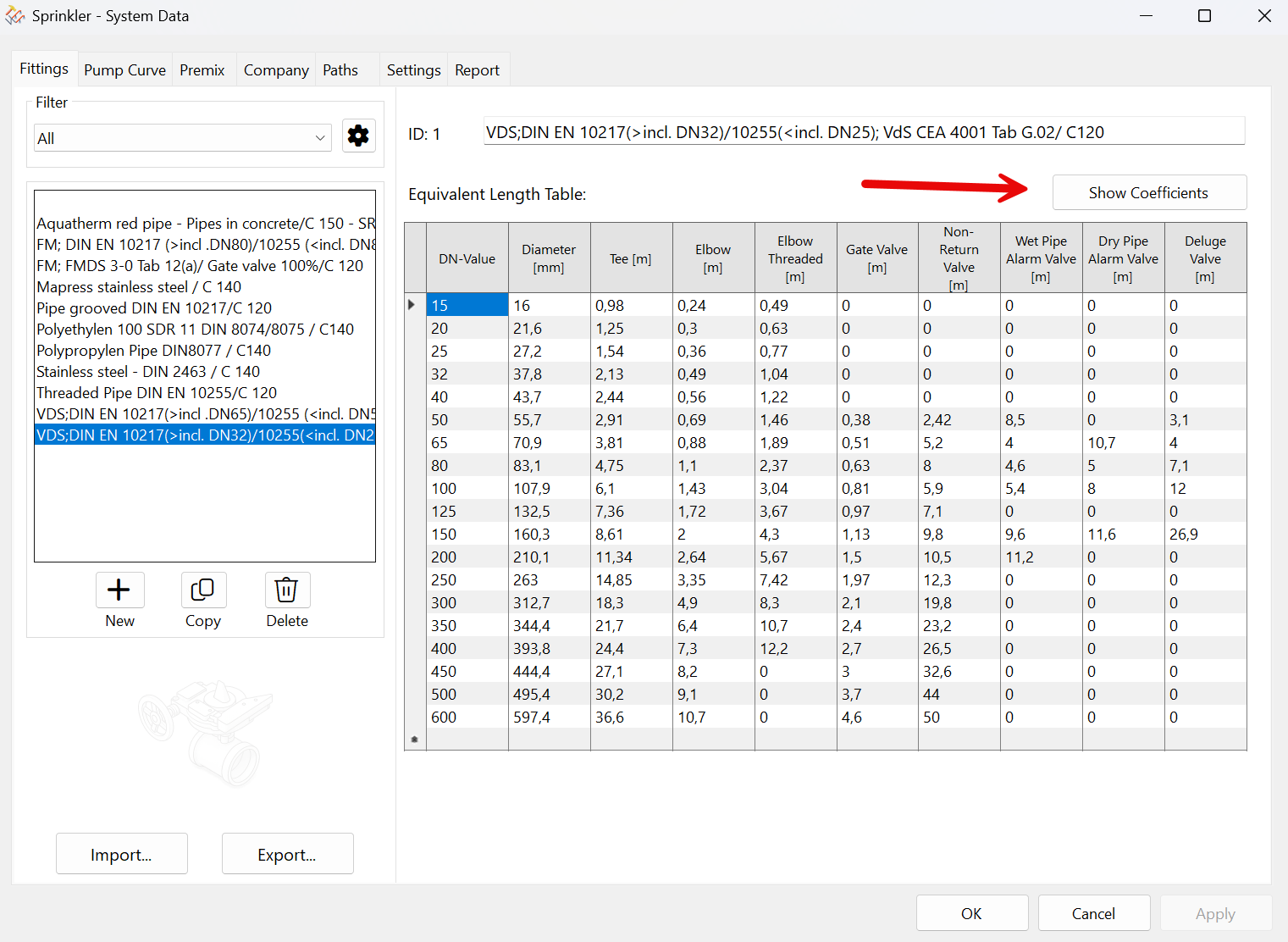

The conversion takes place immediately by clicking here in addition:

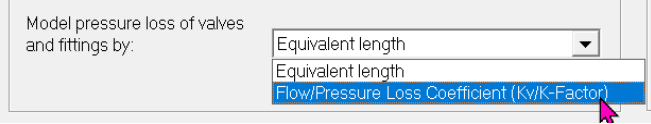

When the “Variable Viscosity” calculation method is selected in  Calculation mode and the setting "Model pressure losses of fittings and valves using: Pressure loss coefficient" is set, fittings will be included in the calculation based on their Kv-value or K-factor.

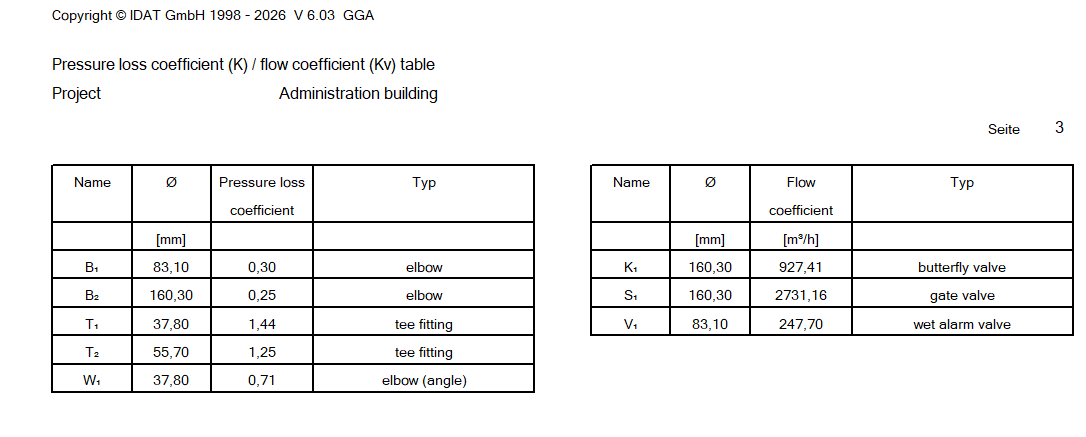

Visible also in equivalent length table in report:
