Branch pipe sub-elements

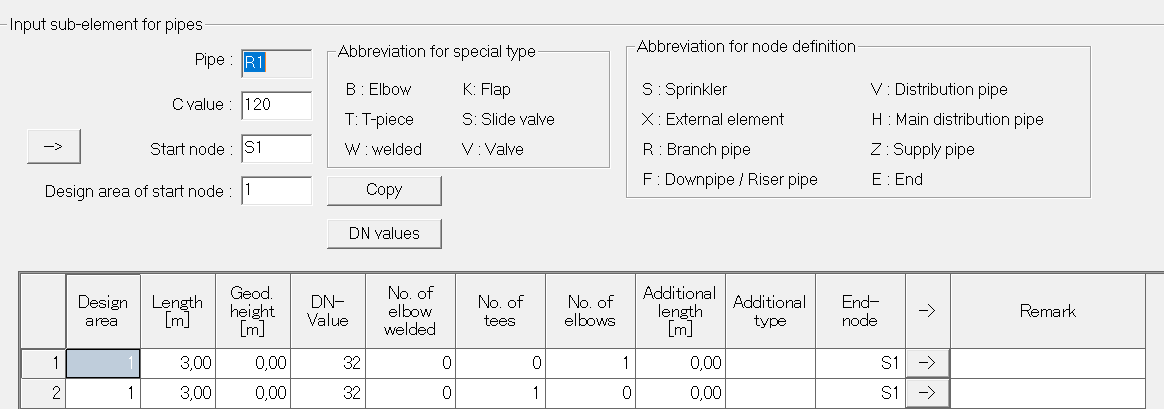

Input of Branch pipe sub-elements

• Design area

Any number: Sprinkler is then included in the design area and will be calculated

No number: Sprinkler is not included in the calculation of the design area

• Length in m

Pipe length between sprinklers

• Geodetic height

Height difference in the Branch pipe to the sprinkler, see also project sketch - preparation

• DN value

DN value of the Branch pipe

• Number of elbows welded, elbows and tees

Enter a number

• Additional length

Enter special lengths in the Branch pipe, e.g. for flexible hoses

• Additional type

Enter the letter of the object like in legend proposed

• End node

Enter the end element of the pipe or the feed-in point

• Remark

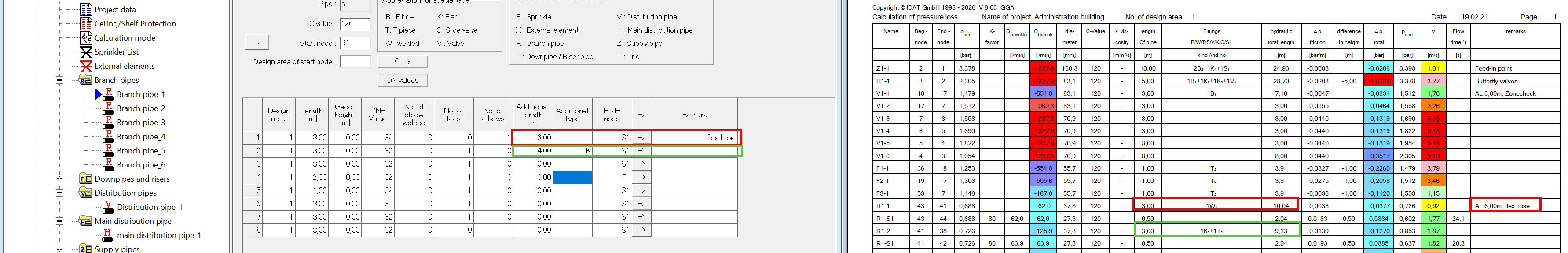

Any comments – These will be included in the report.

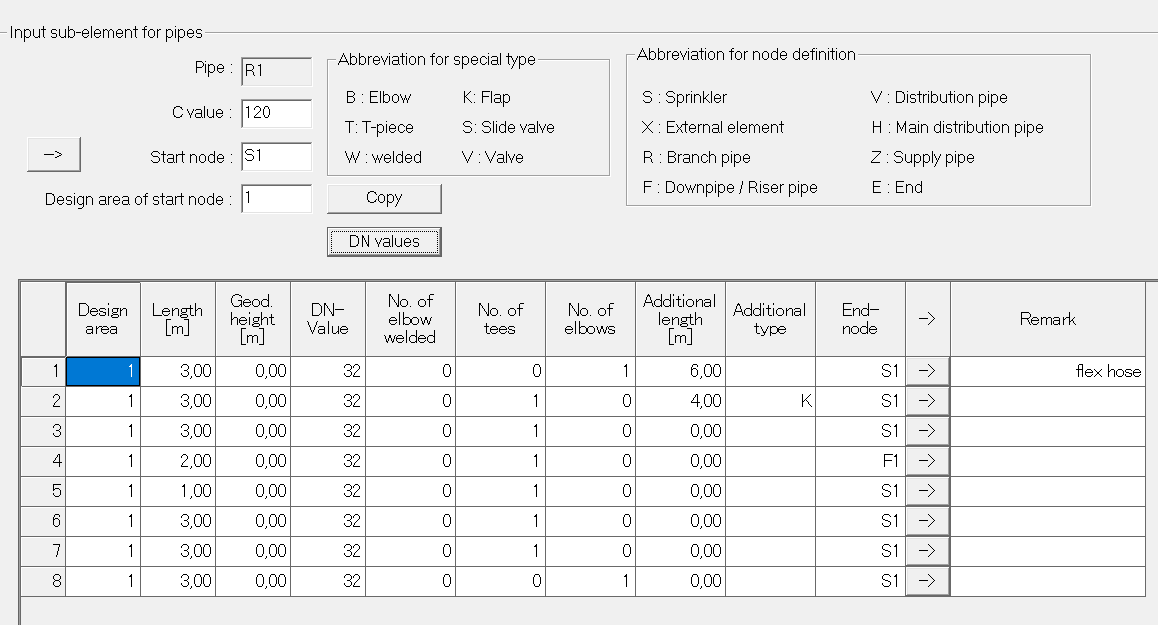

Example of input:

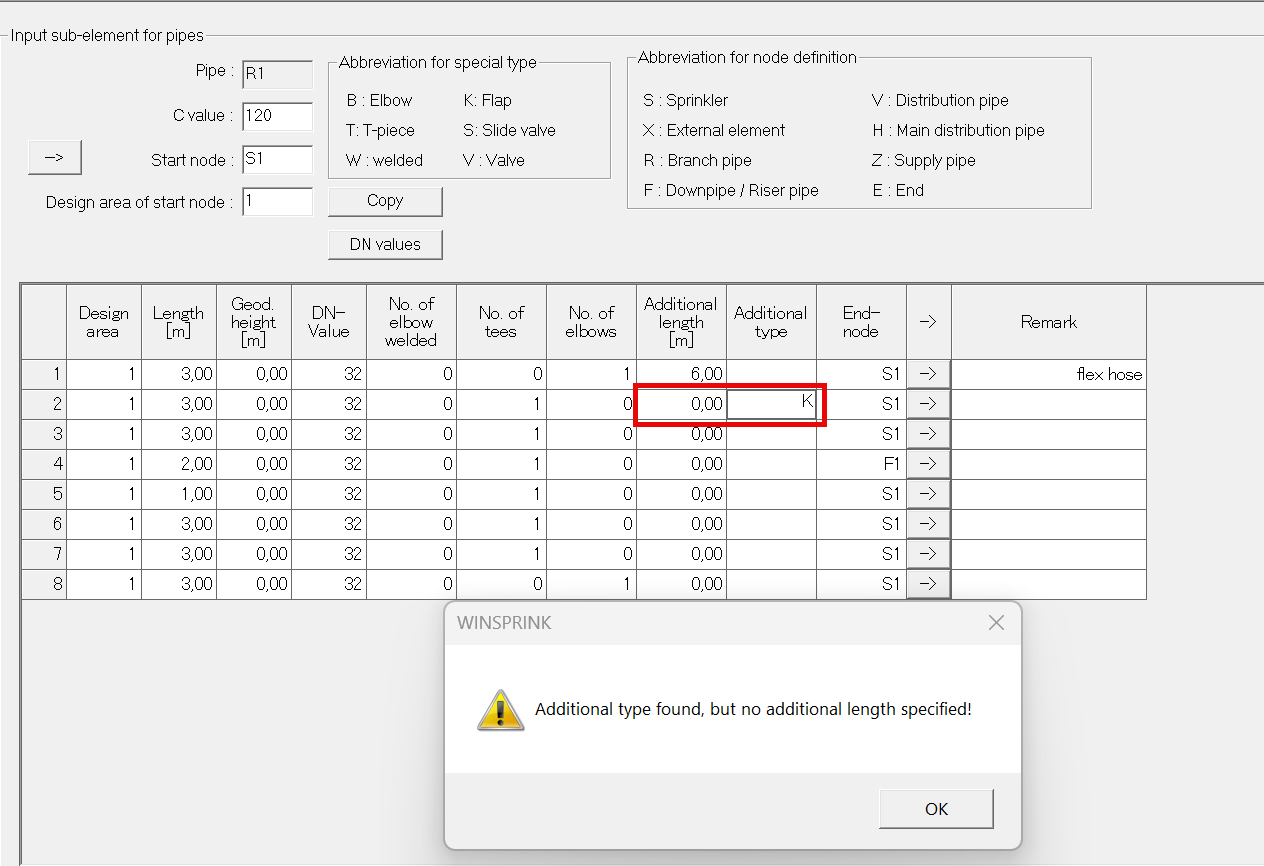

Additional type always together with additional length

• Copy

Copy sub-elements

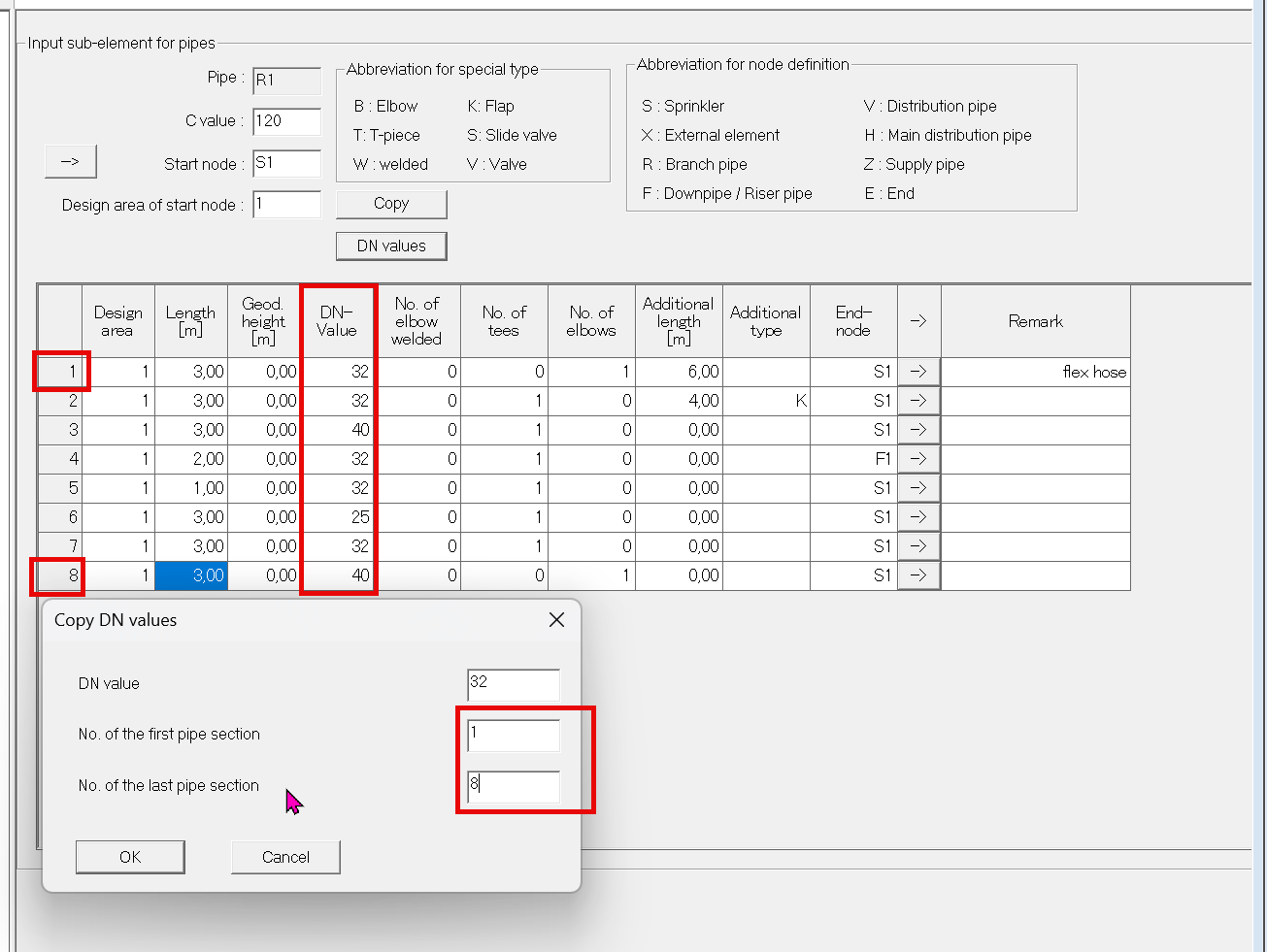

• DN Values

Transferring the same DN values to other sub-elements

Example:

Result:

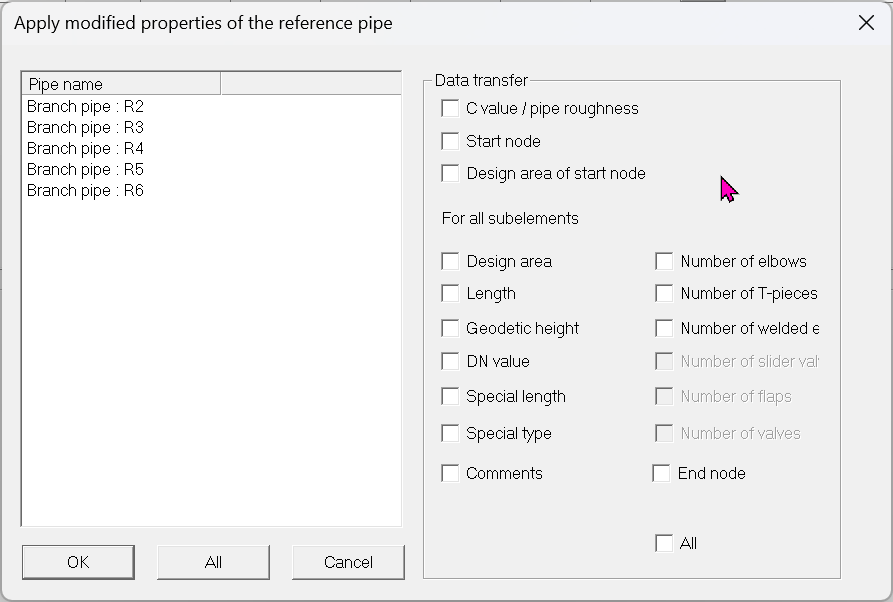

• Adopting changes to other pipes

A dialog box appears when the function is applied DN values.

The selected DN value is also adopted by other Branch pipes if you mark the Branch pipes in the top left corner and click OK.

Cancel - Leave dialog without making changes
