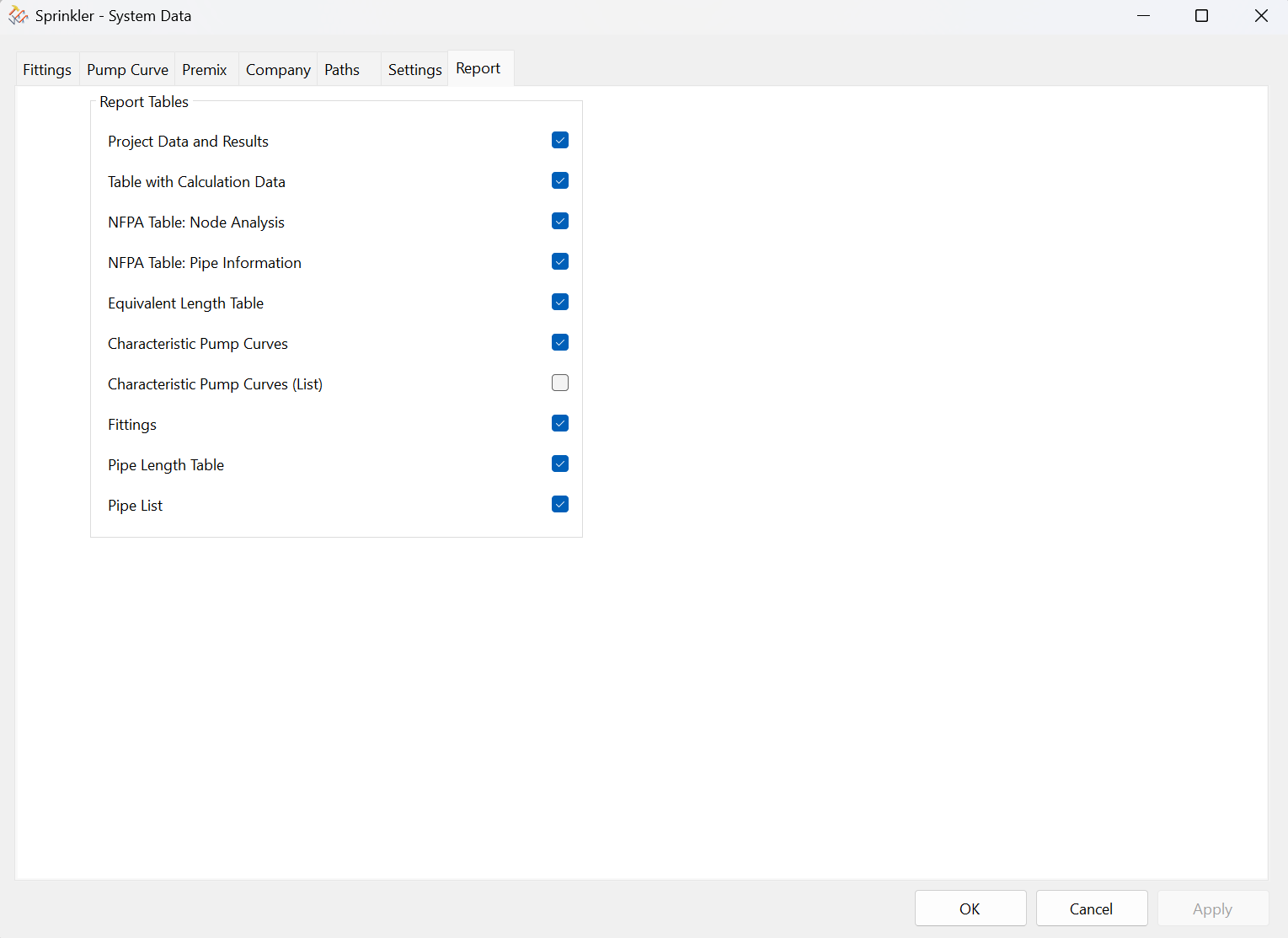

Function: Specify the output pages for the report

This also depends on the type of system, e.g., NFPA. (By default, the overview is generated according to VdS or FM specifications.) NFPA requires a separate list of calculation results.




  • Project Data and Results
    • Report cover page with project and calculation information

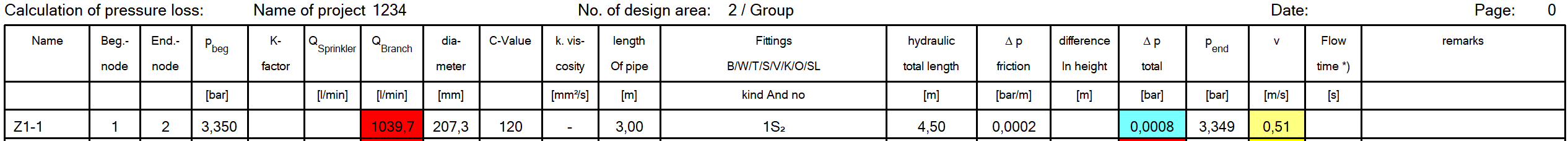

  • Table with Calculation Data

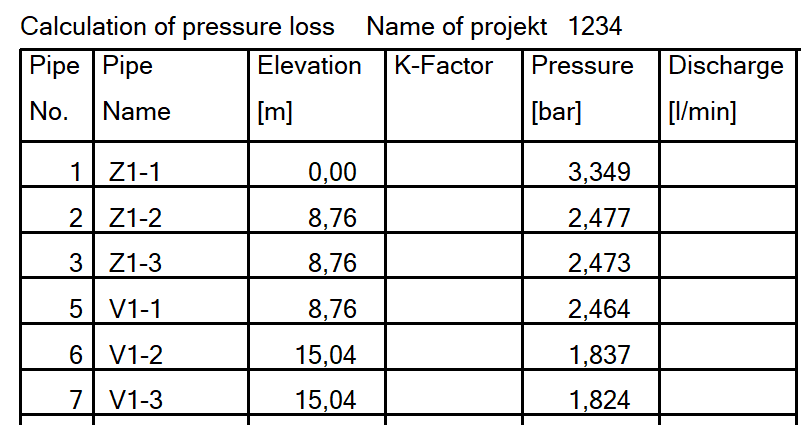

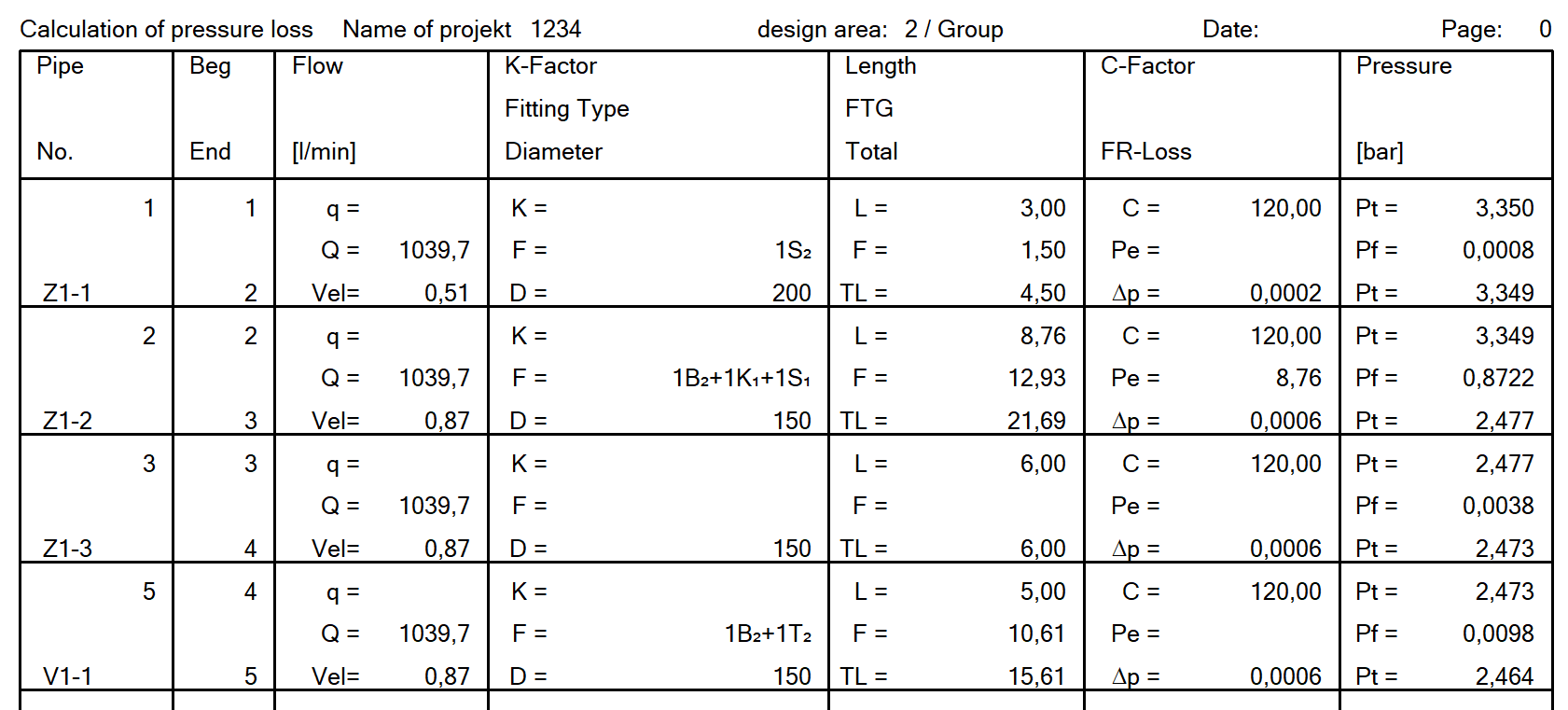

    • Calculation results per pipe segment



  • NFPA Table: Node Analysis
    • Check this box for NFPA projects


  • NFPA Table: Pipe Information
    • Check this box for NFPA projects


The report no longer displays DN values; only inner diameters are shown

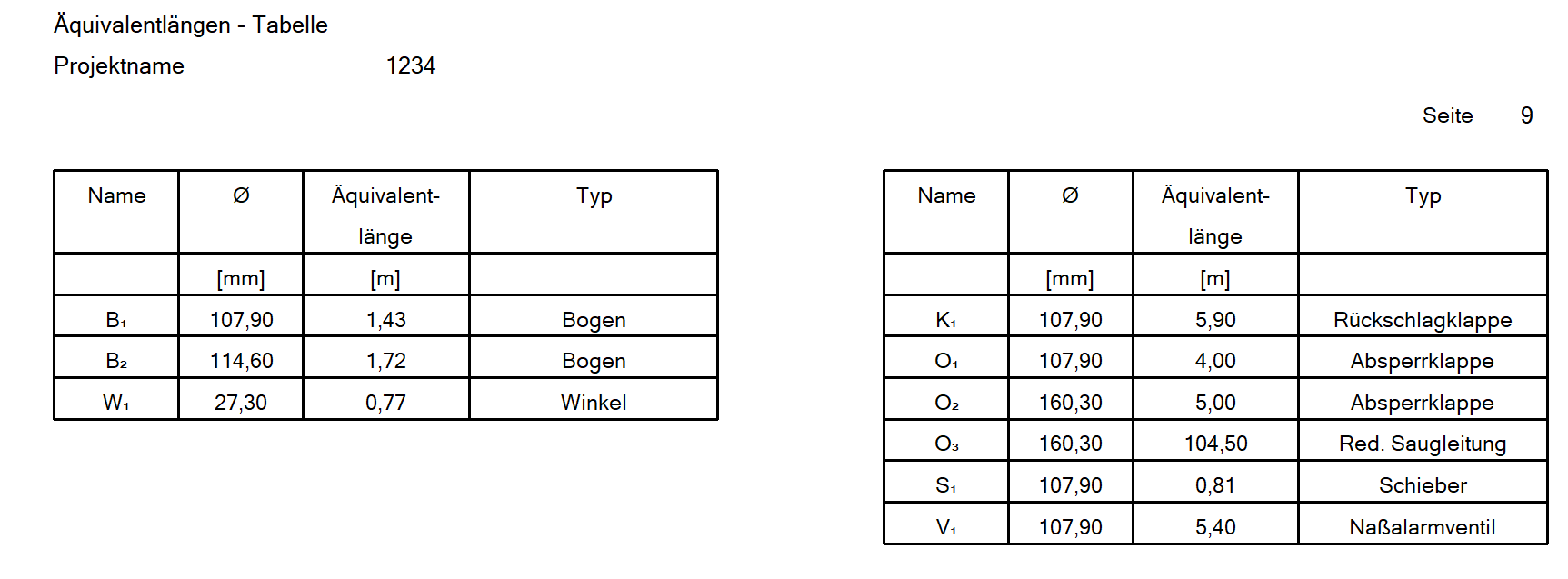

Only the inner diameters used, along with the fittings and components used and their equivalent lengths, are clearly listed. Duplicate fittings or components with different dimensions are numbered sequentially. This ensures that their use in the report is clearly identified


  • Characteristics Pump Curves
    • Graphical representation of the pump performance curve with calculation results -> See the chapter on Pump Curve


  • Characteristics Pump Curves (List)
    • List of all pumps in the report from the pump database, including their approval limits, approval numbers, or pump descriptions. (Not recommended)
  • Fittings
    • List of elbows, elbows threaded, tees, gate valves, butterfly valves, and ball valves.
    • Identical fittings are grouped together..


    • The table contains the following columns
      • Number: Number of identical fittings
      • Type: Elbow/Elbow threaded/Tees/Gate valve/Butterfly valves/Alarm valves
      • 1. DN-Value: 1st diameter (only for elbows, elbows threaded, and tees)
      • 2. DN-Value: 2nd diameter (only for elbows, elbows threaded, and tees)
      • 3. DN-Value: Diameter at the center section (tees only)

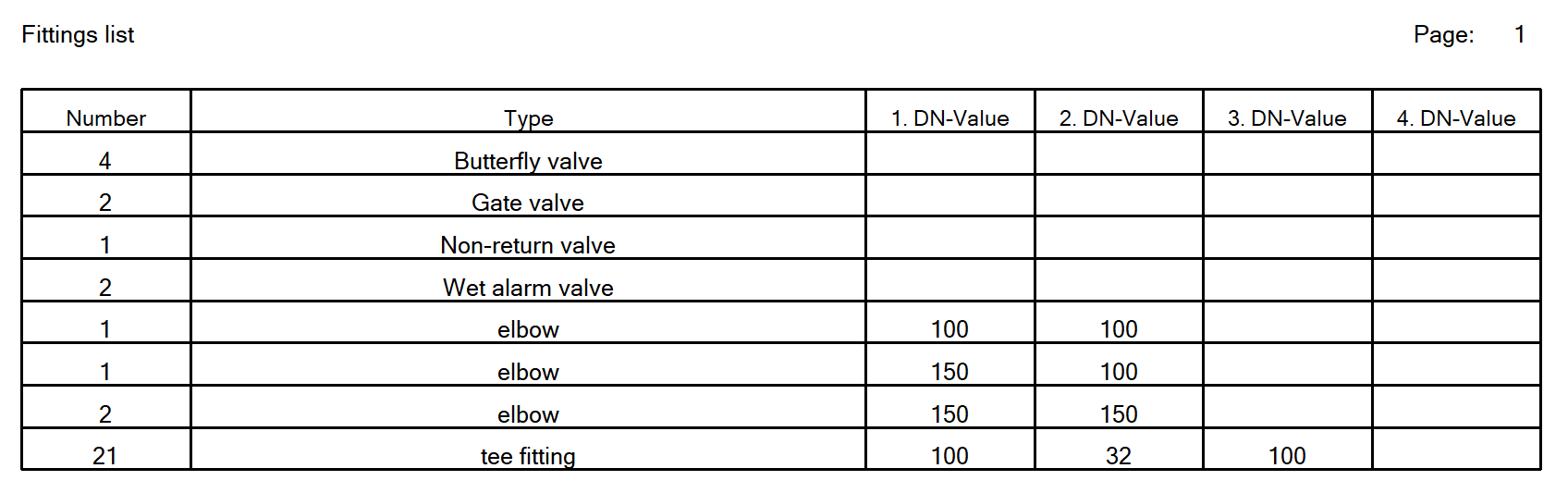

    • The following sample printout contains a summary of the fittings. The DN value is specified here. Note: Only the fittings of the calculated pipe networks are summarized. Not suitable for ordering.


  • List of pipes
    • Summary of the pipe lengths used, listed in the material list. Note: Only the pipe lengths of the calculated pipe networks are summarized. Not suitable for ordering.

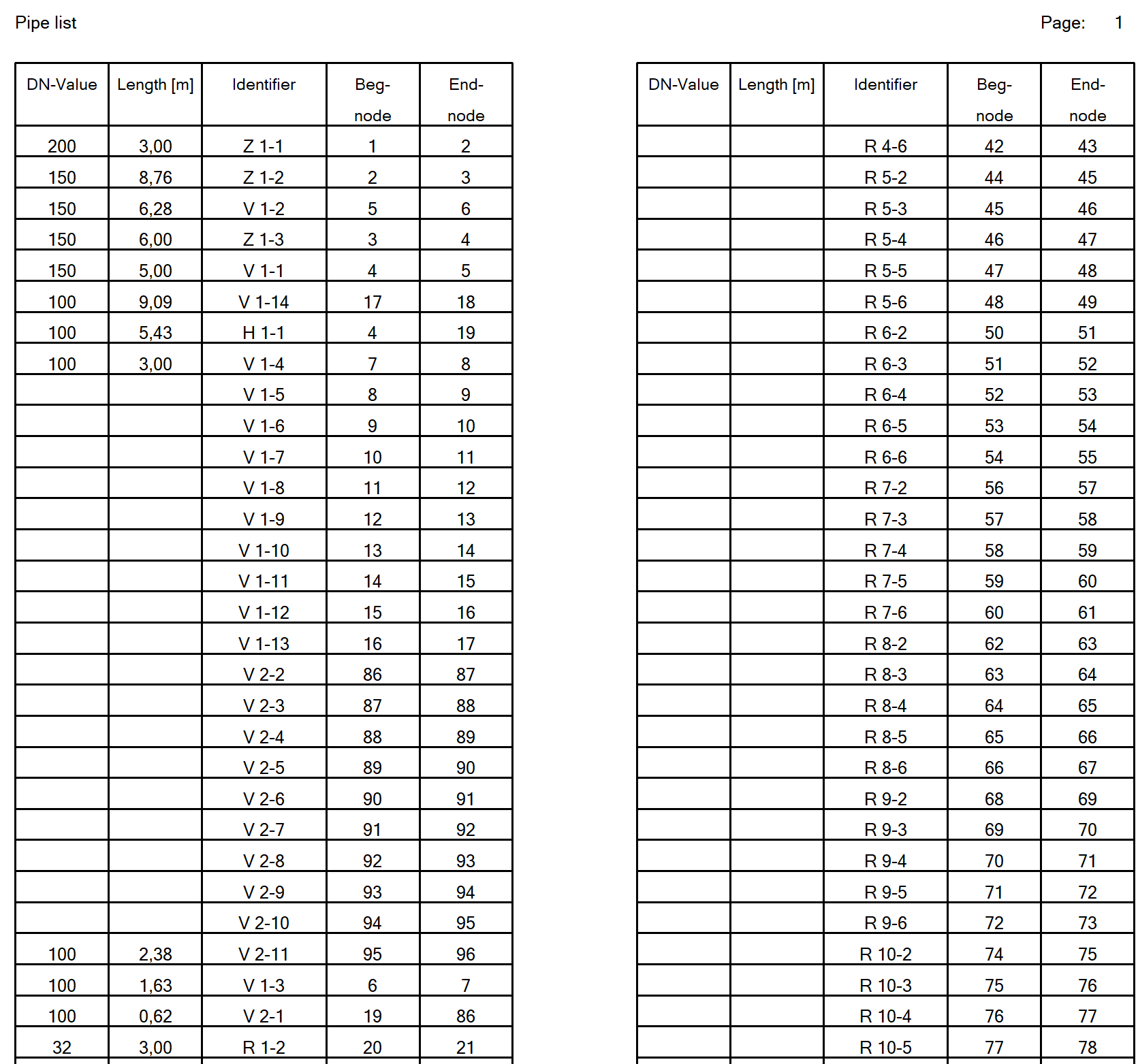

  • Pipe list
    • This list includes all pipes, branch pipes and sprinkler supply pipes. Pipes with the same diameter and length are grouped together.
    • The table contains the following columns
      • DN-Value: DN-Value of the pipe
      • Length: Length of pipe segment
      • Identifier: Pipe type designation: Main number and Sub-number,
      • Beg-node: Starting node of the pipe section
      • End-node: End node of the pipe section
  • For each entry in the table, the identifier column contains a list of all pipes with that diameter and length. The start and end nodes correspond to those in the calculation program's output files.

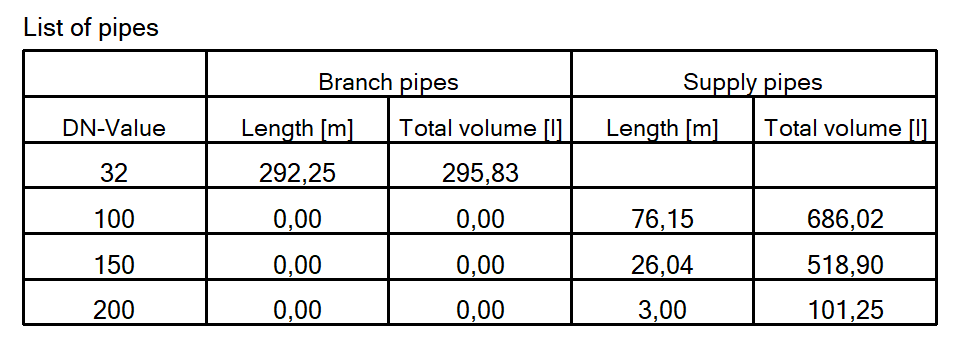

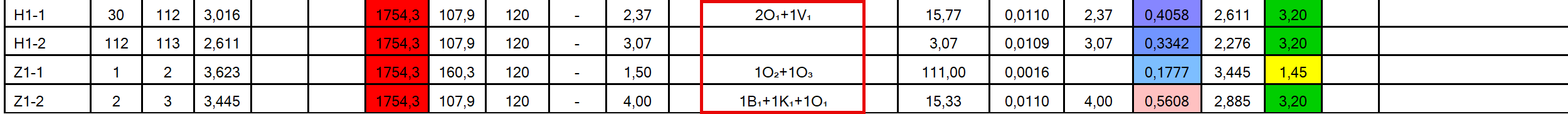

    • The following example contains the pipes of a sprinkler system after calculation:
