Icon:


Manually change pipe subnumbers.

After executing the command, the following input options appear in the Properties palette:



Enter a new main number, e.g., 6, with extension 1



Select the pipes in the desired order.

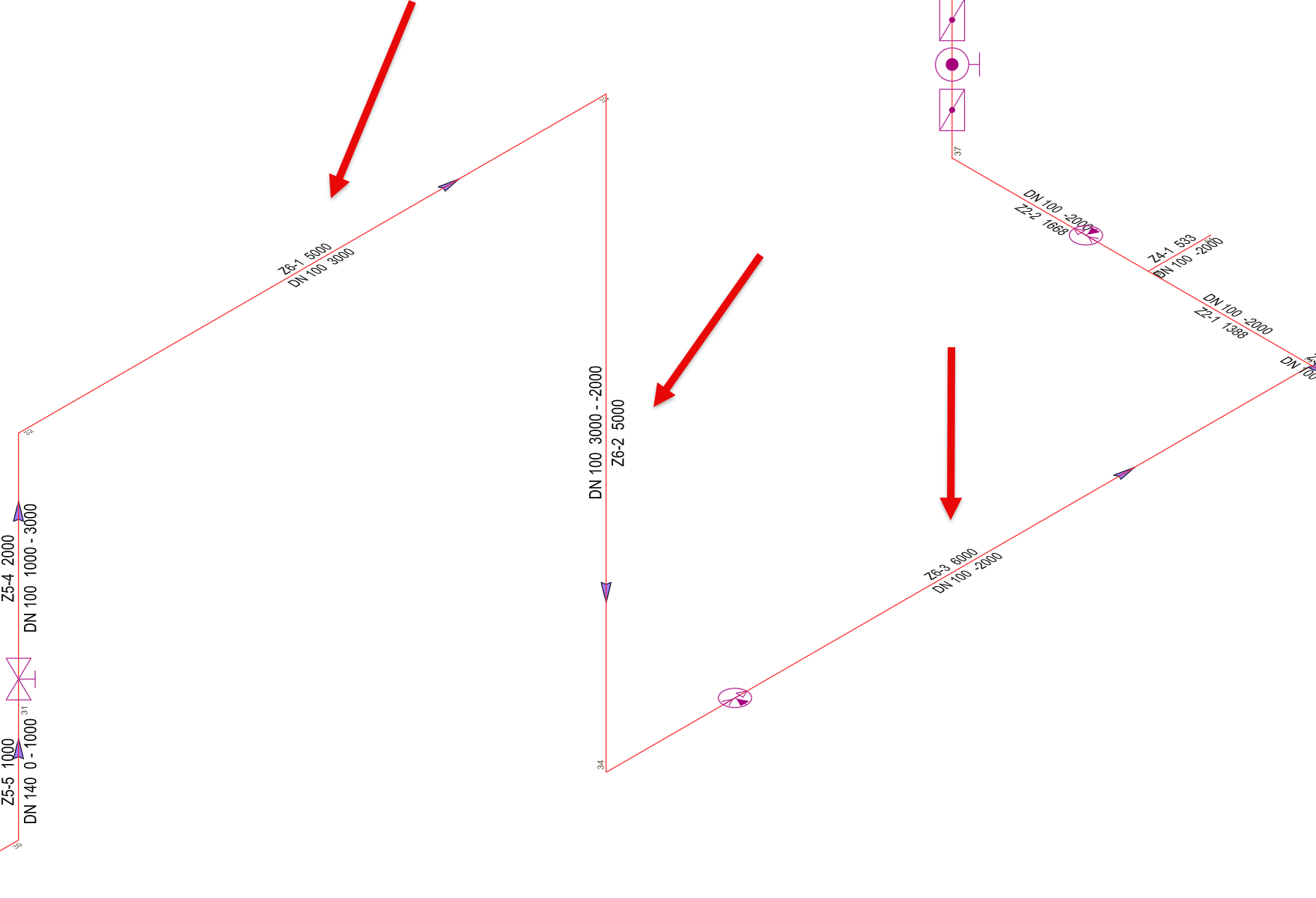

Before:

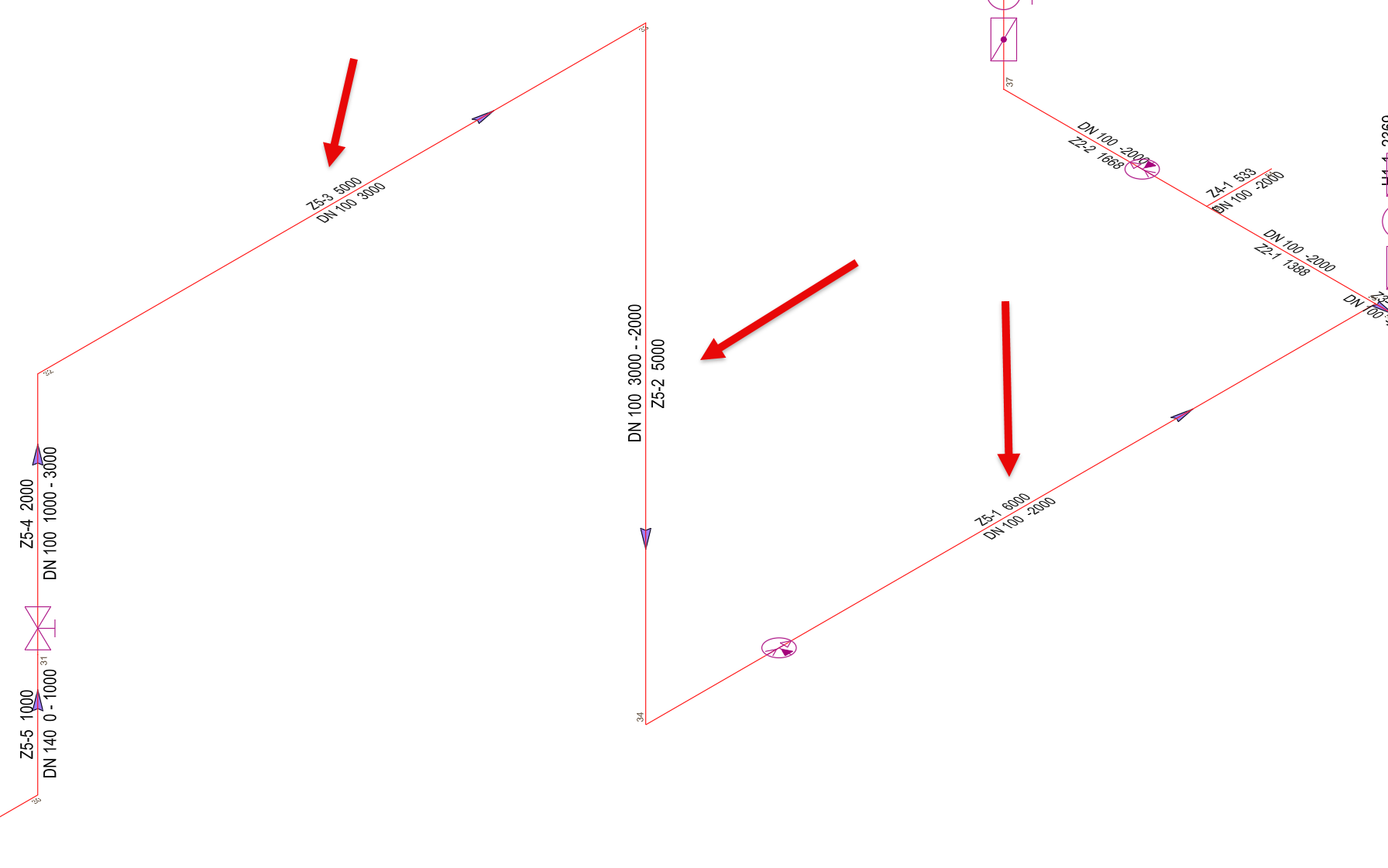

After:

Note: Automatic numbering for the element is then disabled! Automatic numbering must be re-enabled before using!
