Input of supply pipe sub-elements

• Length in m

Pipe length between sprinklers

• Geodetic height

Height difference in the supply pipe to the sprinkler, see also project sketch - preparation

• DN value

DN value of the supply pipe

• Number of elbows welded, elbows, tees, gate valves, non-return valves and pipe alarm valves

Enter a number

• Additional length

Enter special lengths in the supply pipe, e.g. for flexible hoses

• Additional type

Enter the letter of the object like in legend proposed

• End node

Enter the end element of the pipe or the feed-in point

• Remark

Any comments – These will be included in the report.

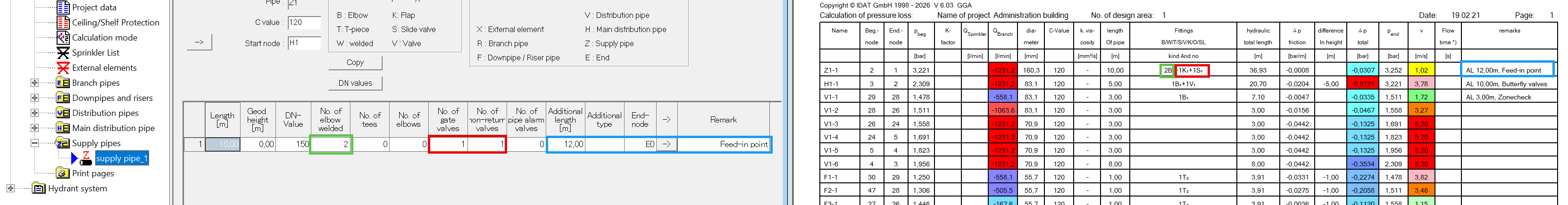

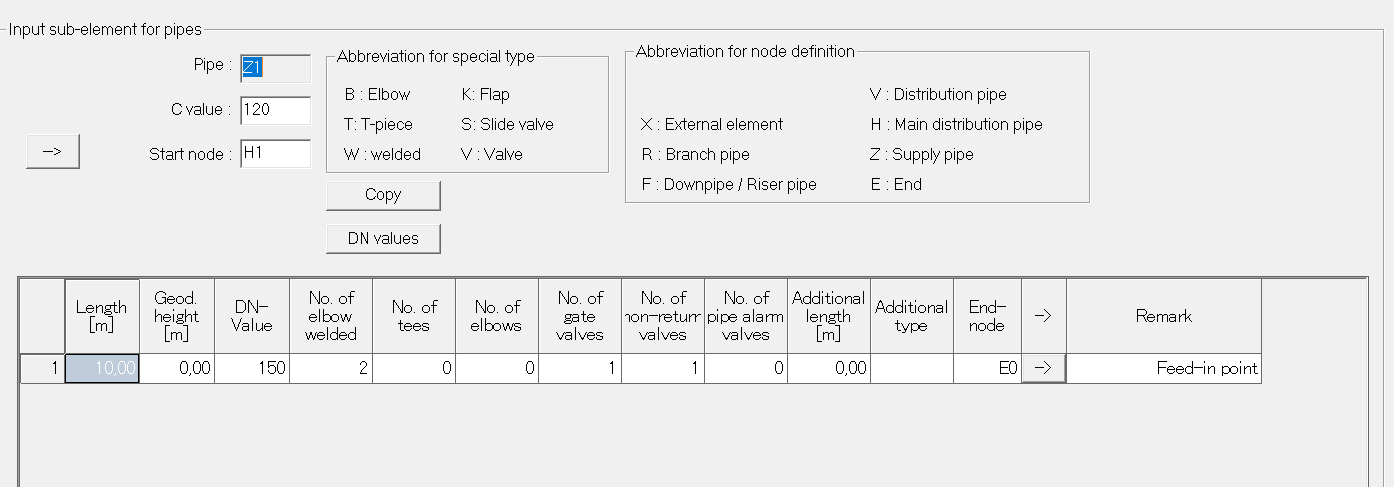

Example of input:

• Copy

Copy sub-elements

• DN Values

Transferring the same DN values to other sub-elements

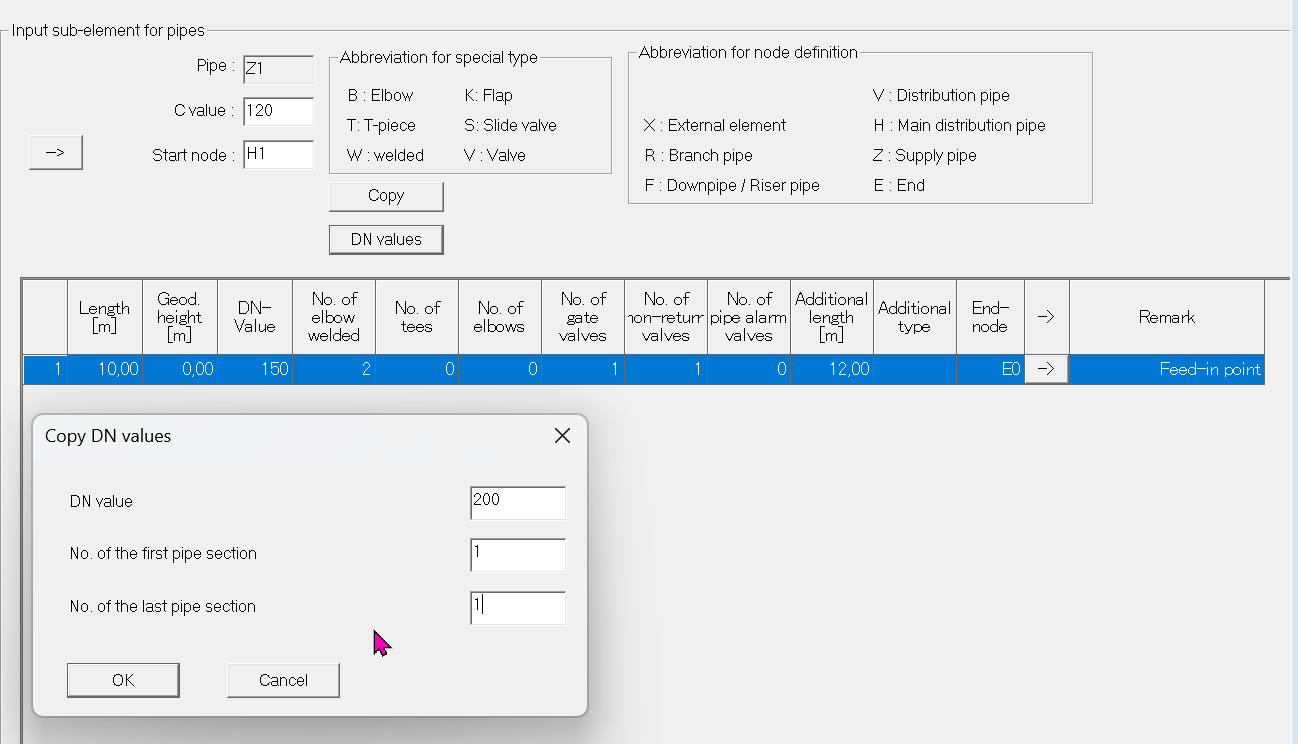

Example:

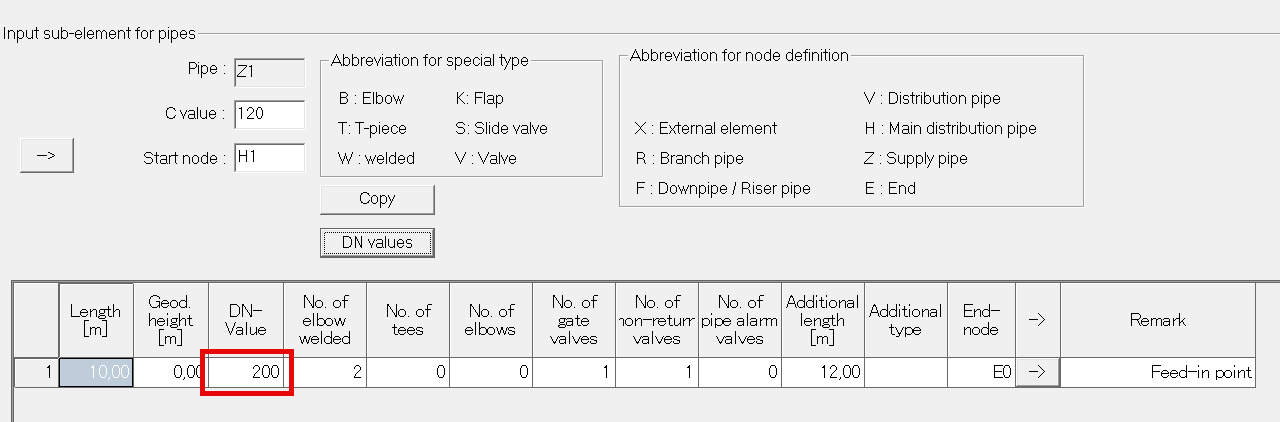

Result:

Adoption of changes to other pipes: Not possible here

Note: Usually, the supply pipe also has the entry point marked at the beginning with E or E0.
