Input of supply pipes


Initial situation:

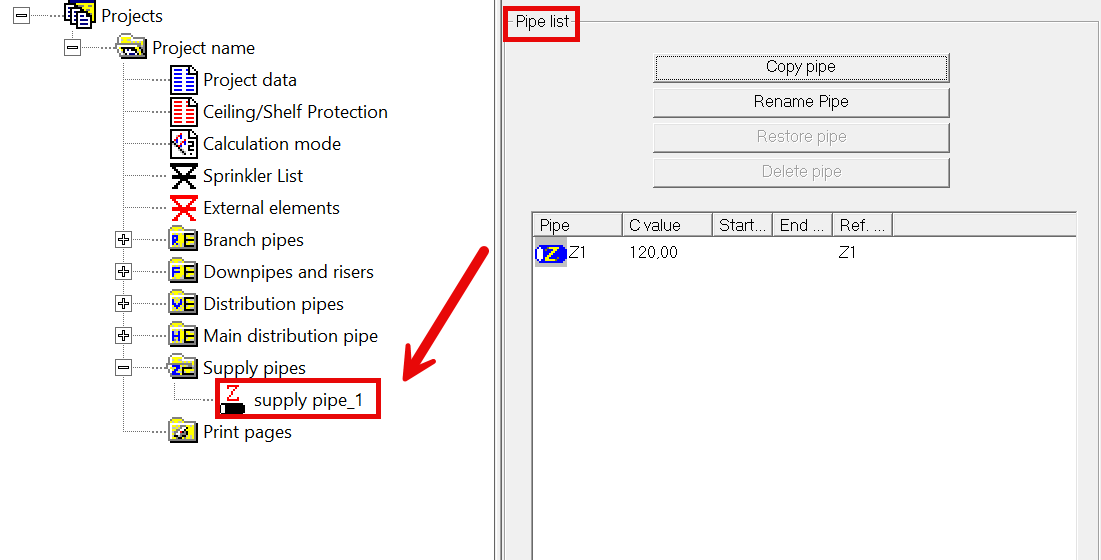

Click on the “supply pipes” tab: the pipe list appears.

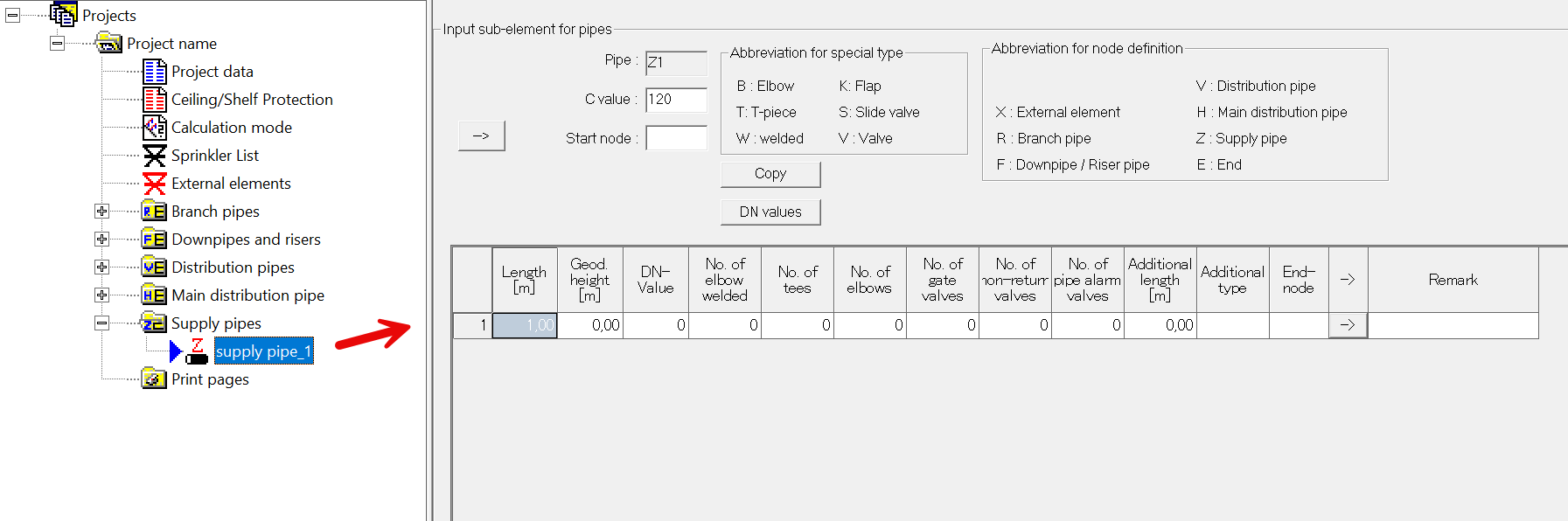

To create a supply pipe, click on the letter Z.

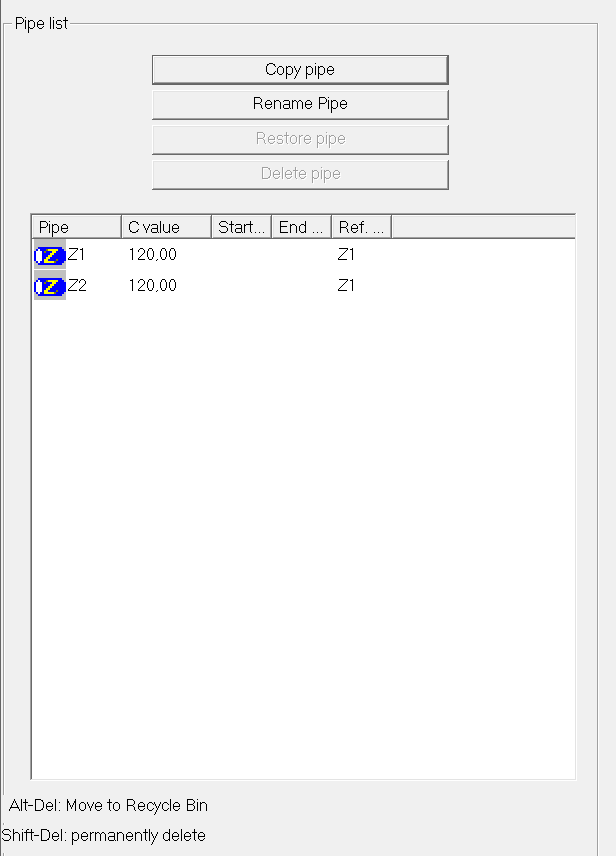

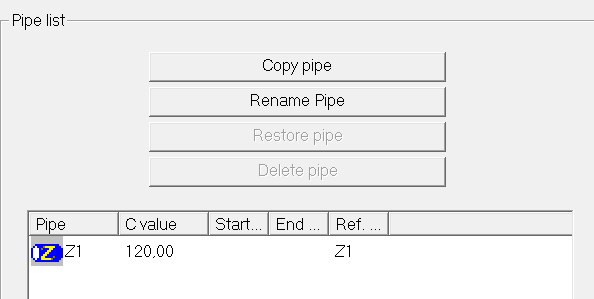

Pipe list view: Generate pipe list by clicking on the supply pipe tab:

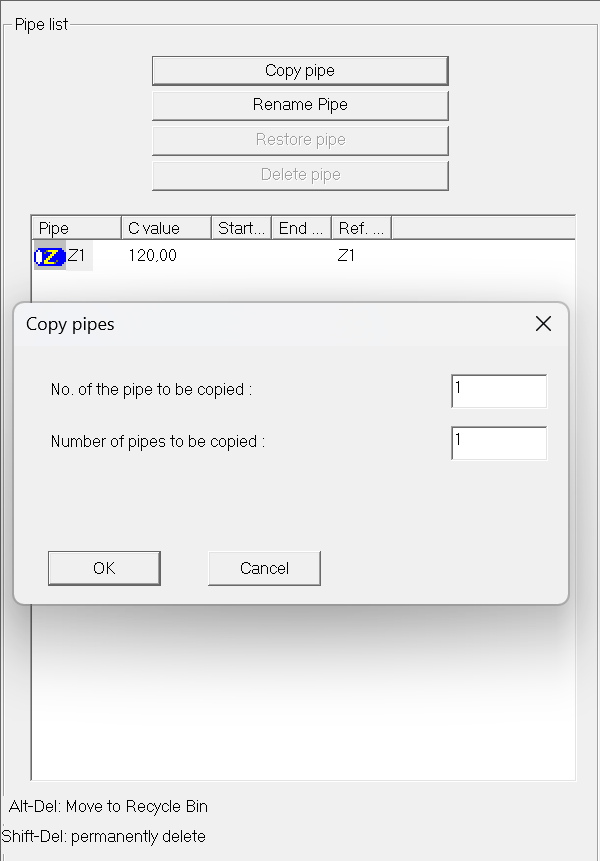

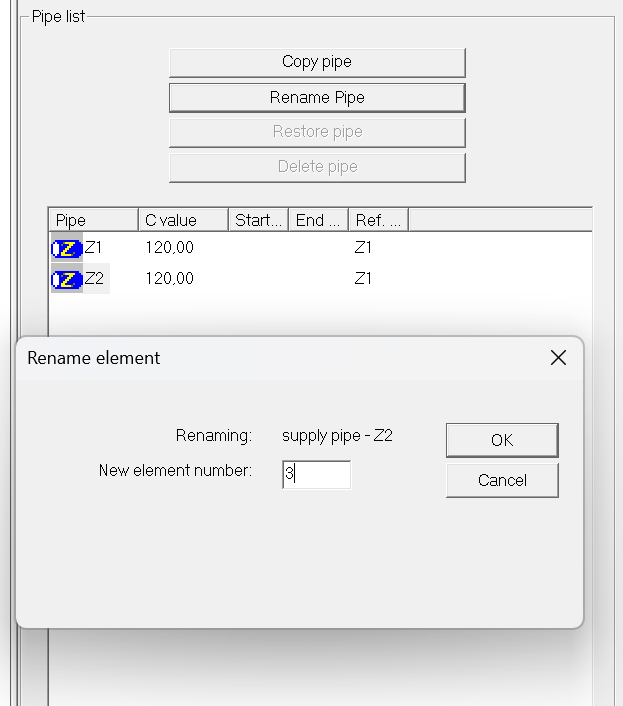

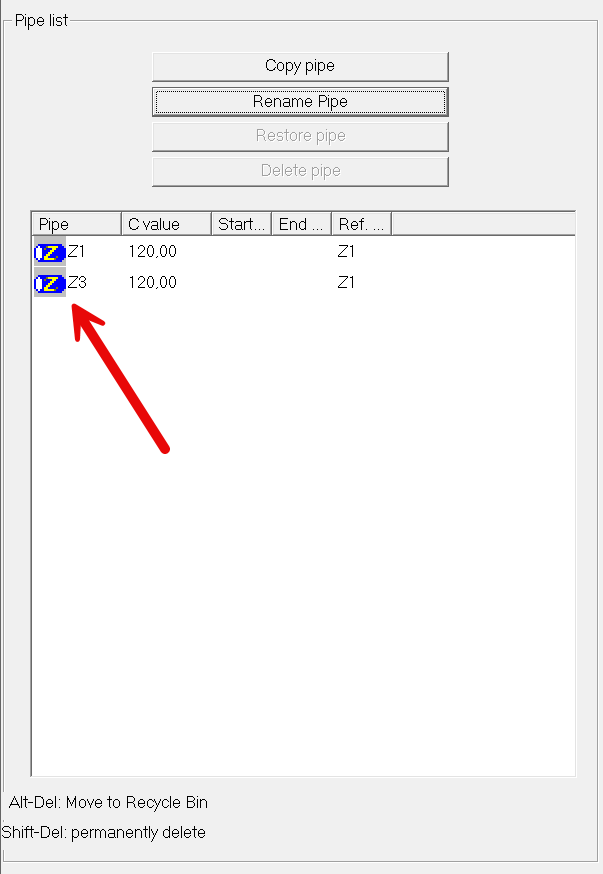

The pipe list offers the option of copying and renaming individual pipes.


Command Alt-Del -> supply pipe is moved to the trash

Command Shift-Del -> supply pipe is permanently deleted


Pipes can be restored from the trash by clicking Restore and the trash can be emptied by clicking Delete.
