Project data

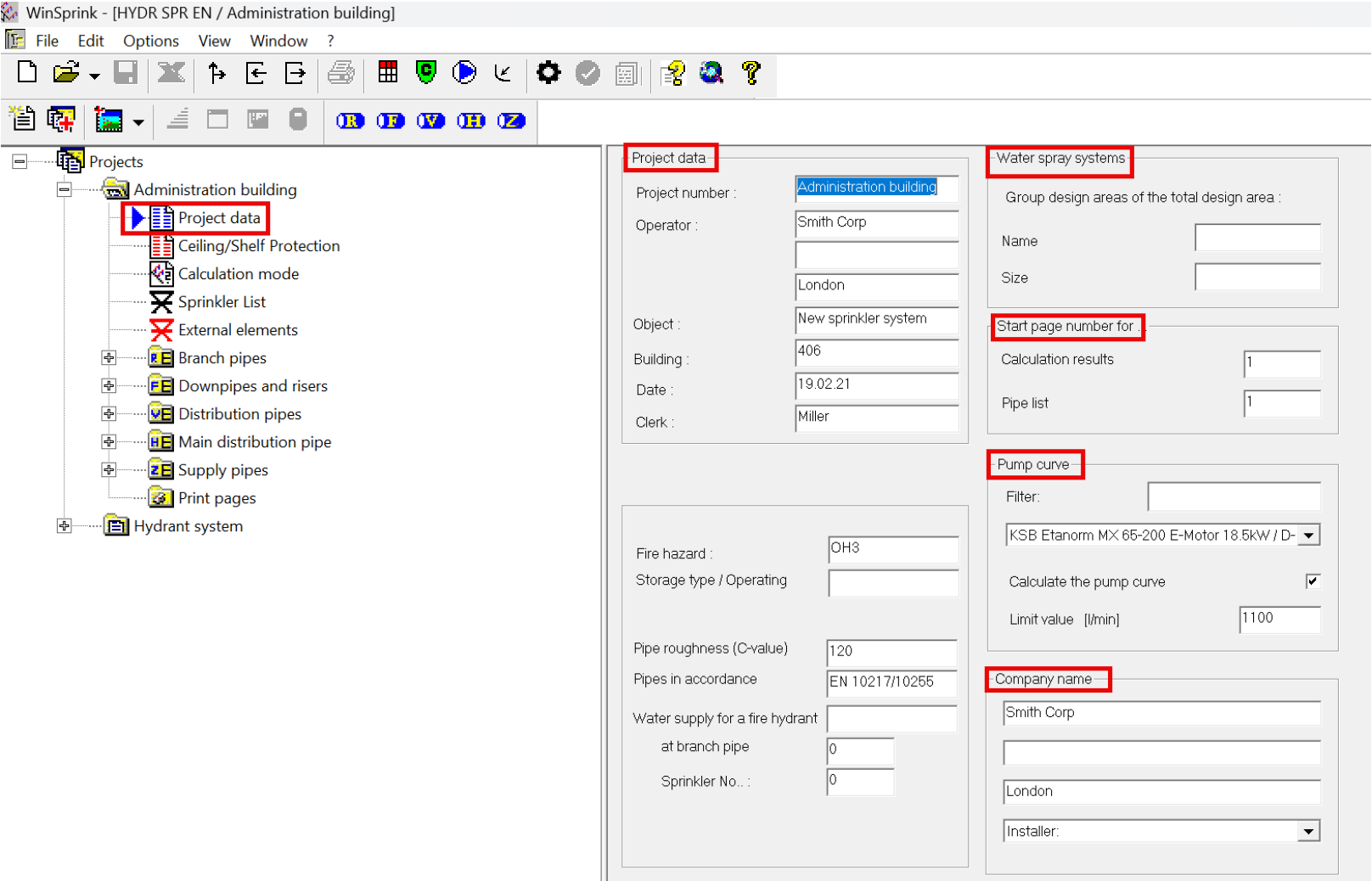

Project data:

The Element “Project data” contains general informations about the project. (not relevant for calculation/purely informative)

• Water spray systems:

Field for information on a spray water extinguishing system

• Start page number for..:

Field for the report output.

The numbering of the protocol pages can be influenced.

A page number can be specified for both the calculation results and the pipe list.

The remaining pages are numbered accordingly.

• Pump curve

Field for selecting a pump from the pump database.

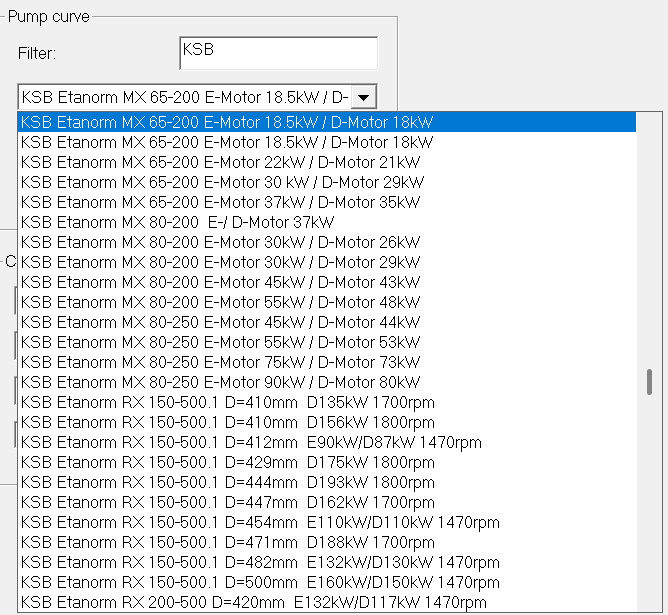

Search for a pump, e.g., by manufacturer name, in the Filter field:

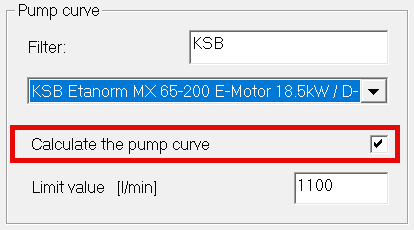

Use a checkbox to specify whether the pump performance curve should be included in the calculation. The appropriate pump has to be known in advance.

This can also be selected later in the Calculation program.

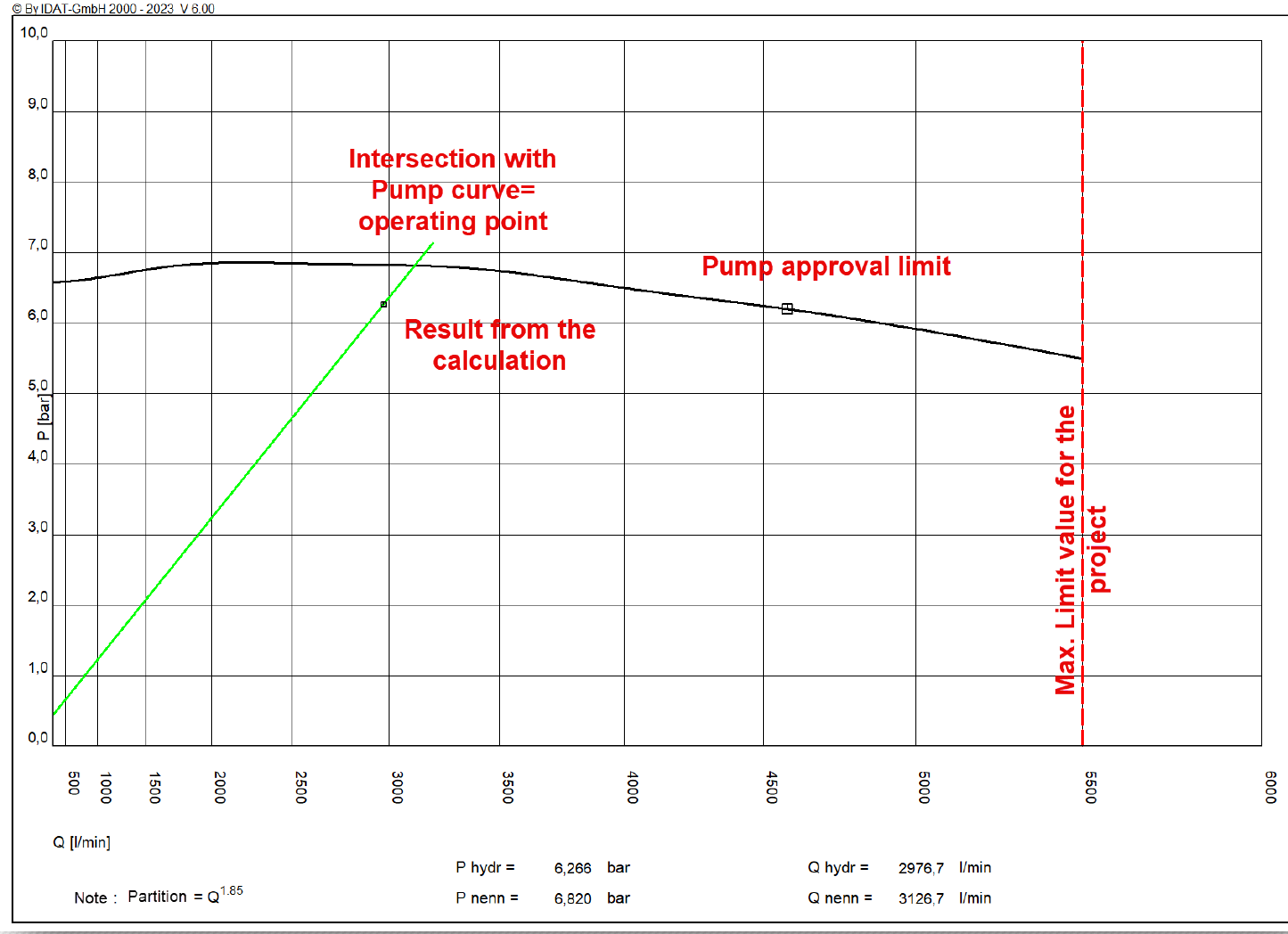

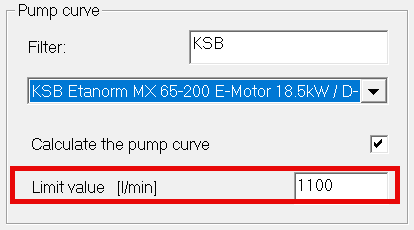

Enter the pump's maximum flow rate in l/min. Displayed on the graph with the pump performance curve.

However, this can also be used to mark the maximum limit of the water quantity for the project in the graphic, based on the water supply, e.g.5500l/min (marked by a red line).

• Company name

Field for entering the Company name of the installer, operator, or specialist planner.
