Downpipes and risers sub-elements

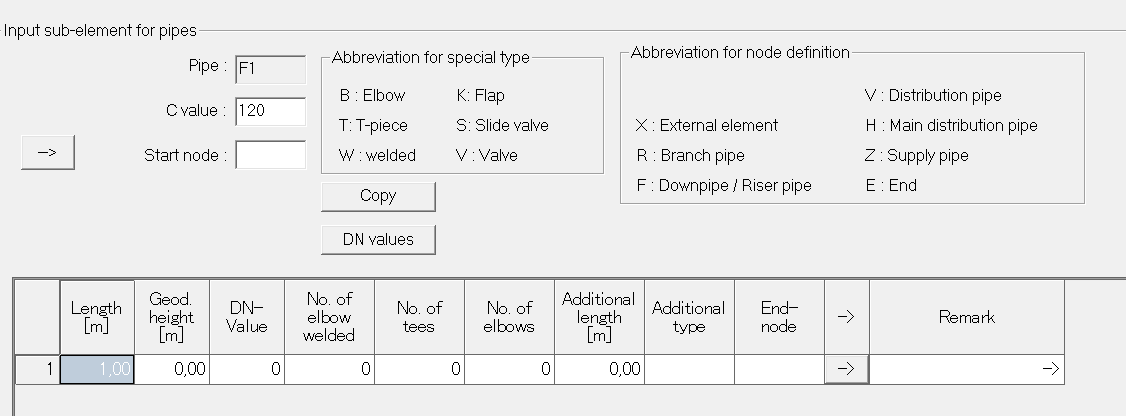

Input of Downpipes and risers sub-elements

• Length in m

Pipe length between sprinklers

• Geodetic height

Height difference in the fall and rising pipe to the sprinkler, see also project sketch - preparation

• DN value

DN value of the fall and rising pipe

• Number of elbows welded, elbows and tees

Enter a number

• Additional length

Enter special lengths in the fall and rising pipe, e.g. for flexible hoses

• Additional type

Enter the letter of the object like in legend proposed

• End node

Enter the end element of the pipe or the feed-in point

• Remark

Any comments – These will be included in the report.

• Copy

Copy sub-elements

• DN Values

Transferring the same DN values to other sub-elements

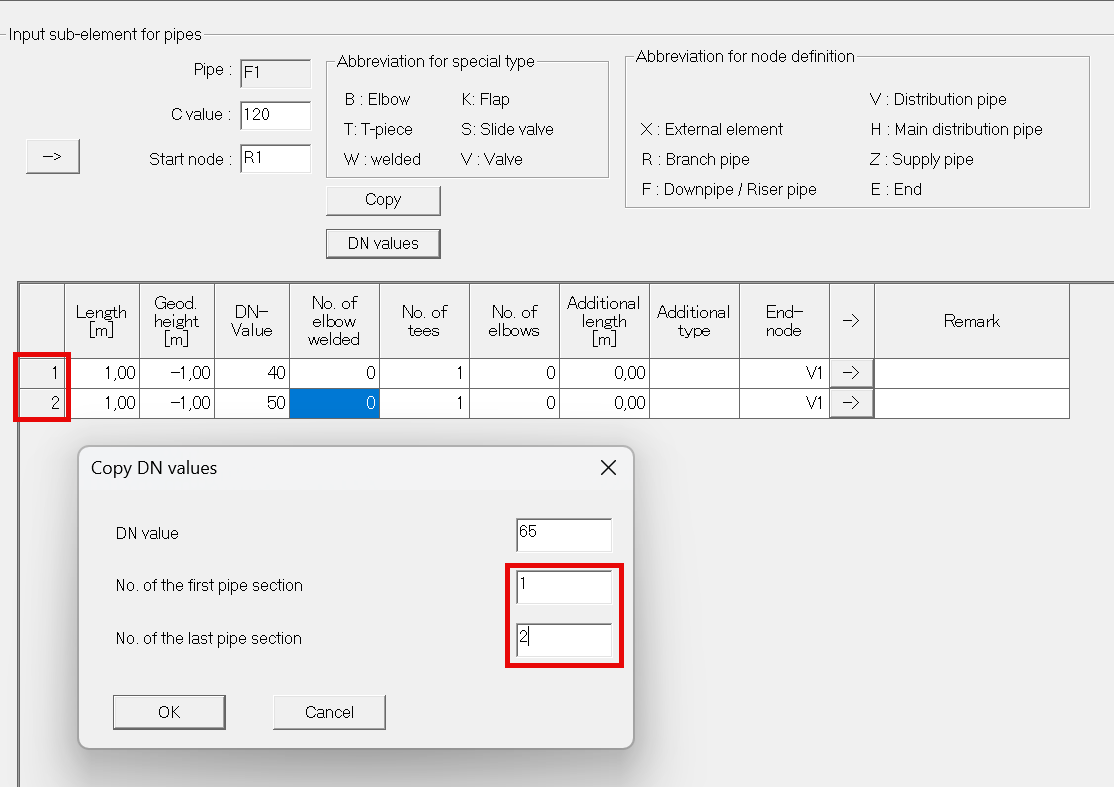

Example:

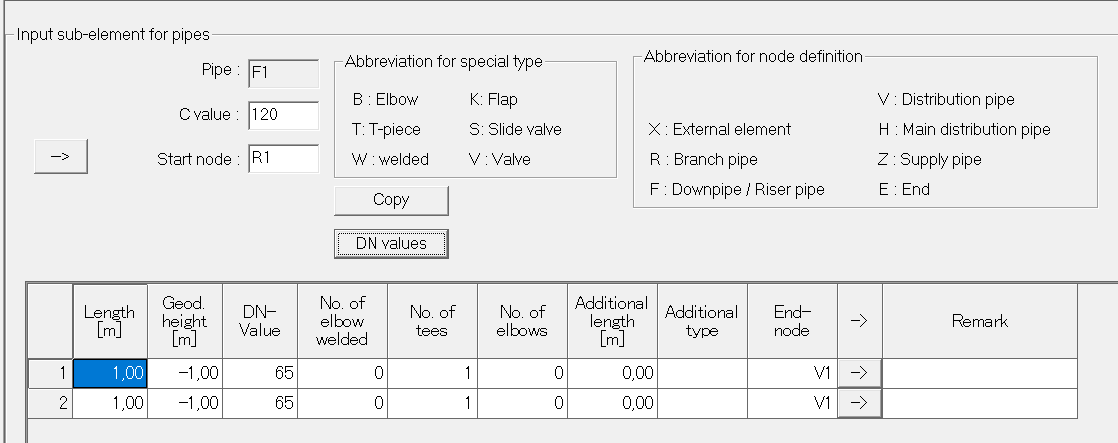

Result:

• Adopting changes to other pipes

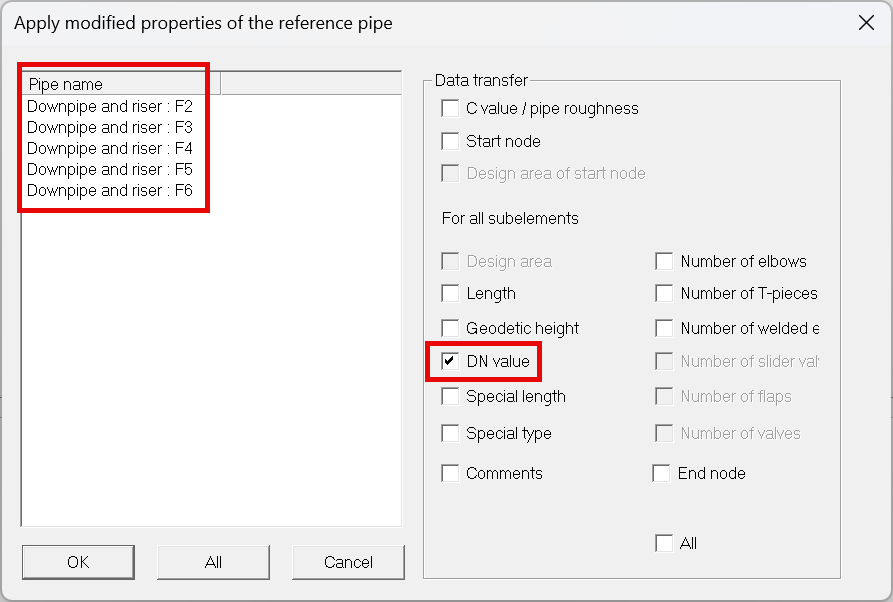

A dialog box appears when the function is applied DN values.

The selected DN value is also adopted by other fall and rising pipes if you mark the fall and rising pipes in the top left corner and click OK.

Cancel - Leave dialog without making changes
