Function: Conversion of equivalent lengths of fittings into K-factors/Kv values for calculations using variable viscosity (see SpriCAD manual)


For calculations using variable viscosity, the fittings and components must be included in the calculation along with their K-factors/Kv values (power-law model).

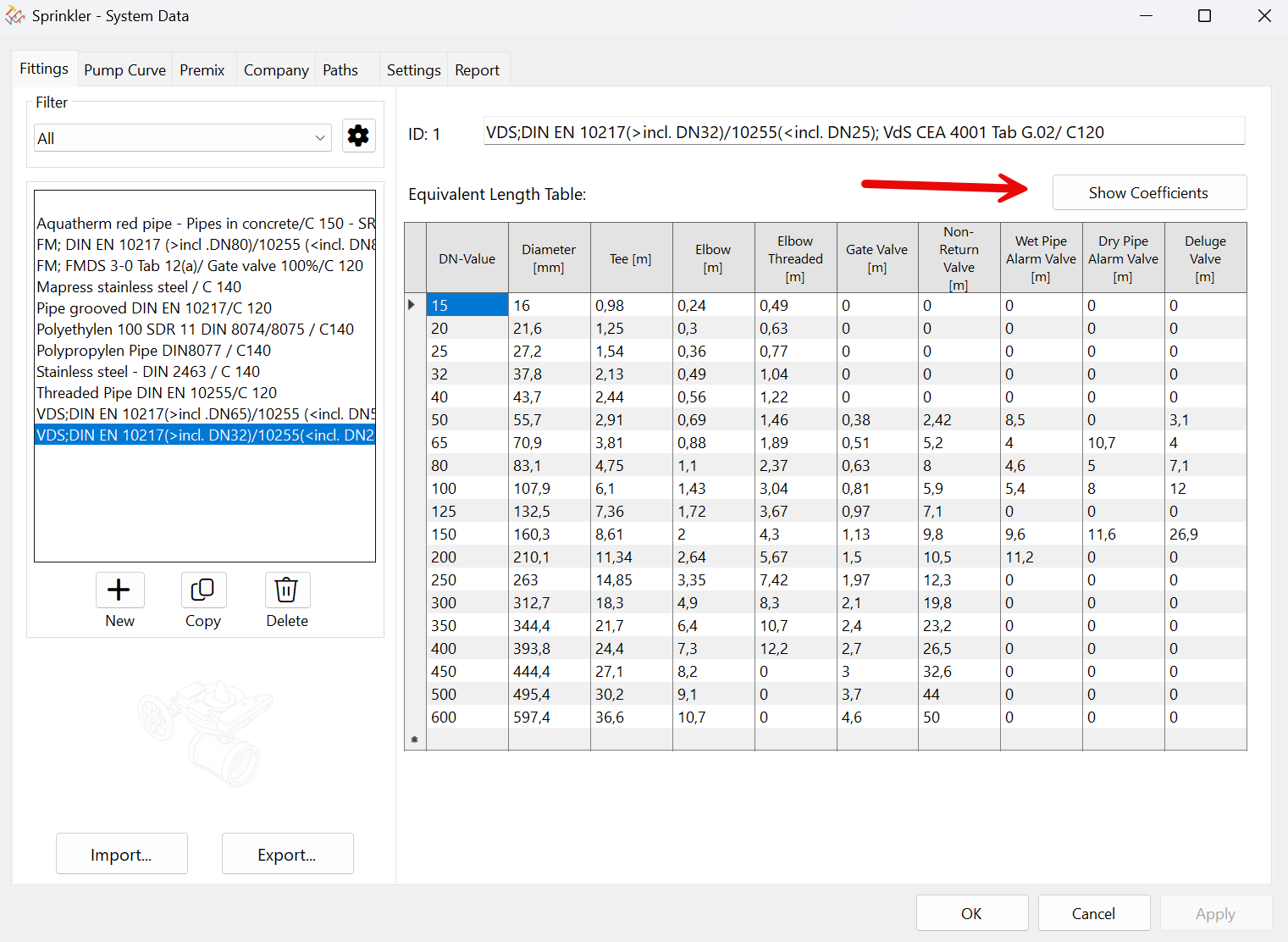

Existing equivalent lengths of the components can be converted at the click of a button.

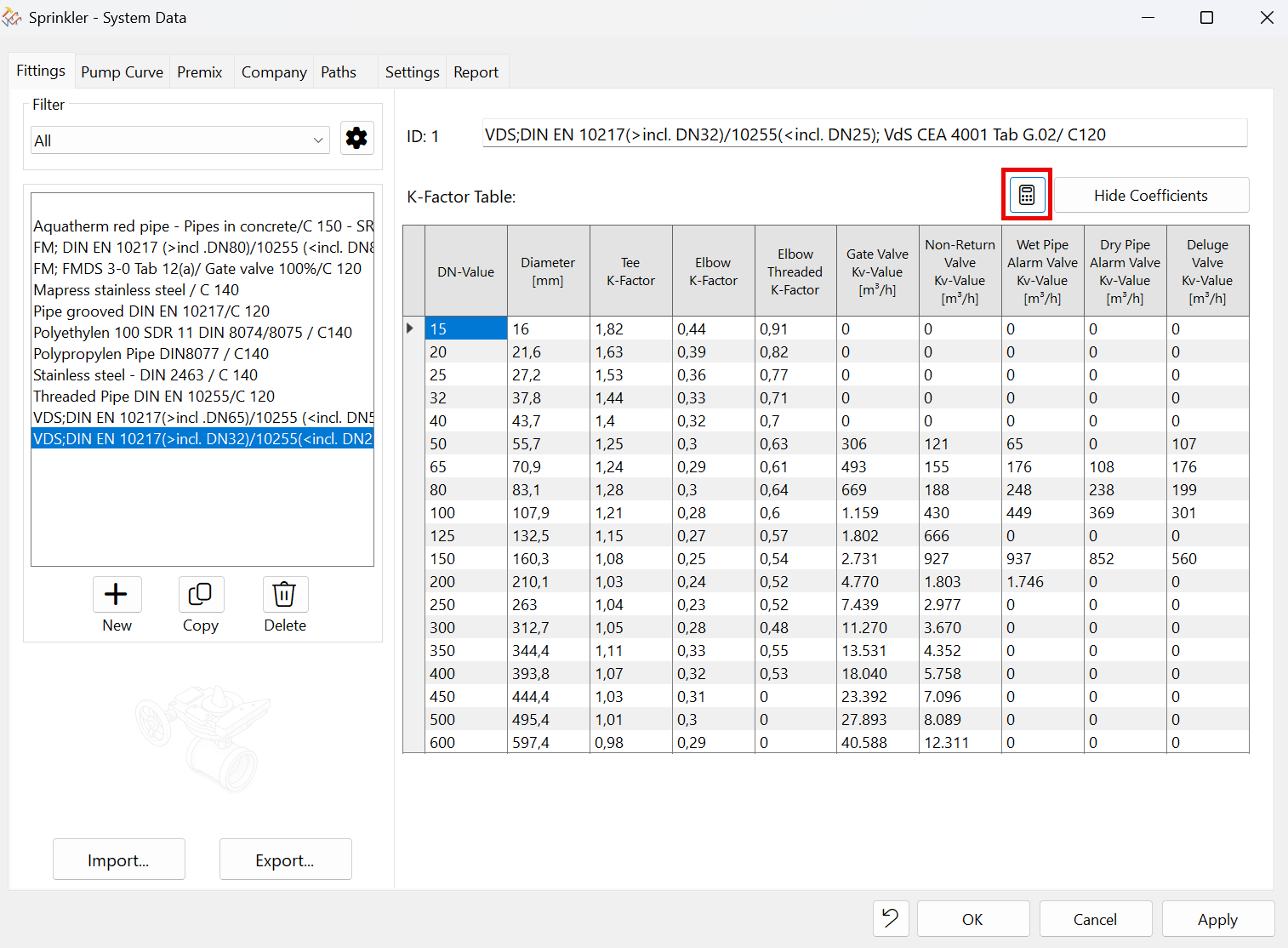

Click to show coefficients:


The conversion takes place immediately by clicking here in addition:


When the “Variable Viscosity” calculation method is selected in SpriCAD and the setting "Model pressure losses of fittings and valves using: Pressure loss coefficient", the default input settings in the symbol window automatically changes. (see SpriCAD manual)

Example:

Slider

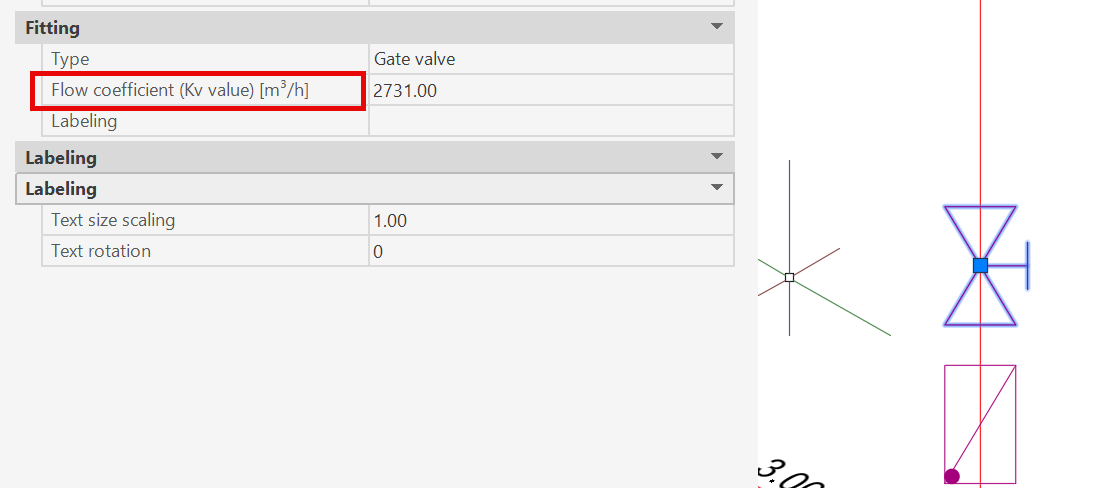

This value is not automatically imported from the new table. The user must enter this value.
