Distribution pipes sub-elements

Input of Distribution pipes sub-elements

• Length in m

Pipe length between sprinklers

• Geodetic height

Height difference in the distribution pipe to the sprinkler, see also project sketch - preparation

• DN value

DN value of the distribution pipe

• Number of elbows welded, elbows, tees, gate valves, non-return valves and pipe alarm valves

Enter a number

• Additional length

Enter special lengths in the distribution pipe, e.g. for Zonecheck

• Additional type

Enter the letter of the object like in legend proposed

• End node

Enter the end element of the pipe or the feed-in point

• Remark

Any comments – These will be included in the report.

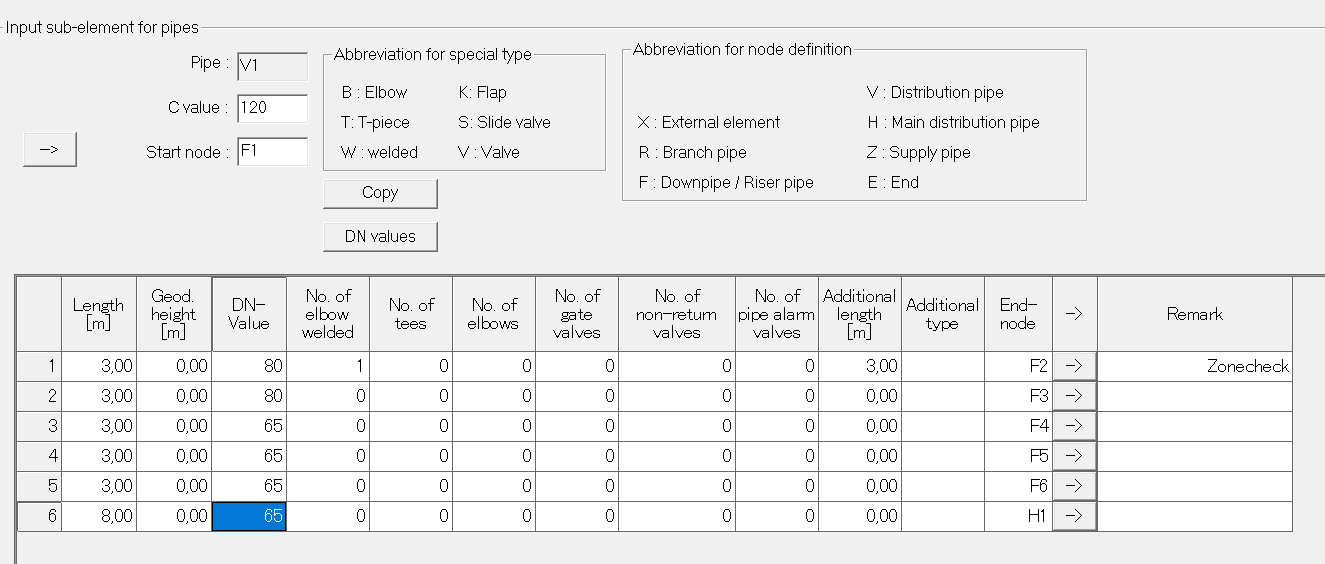

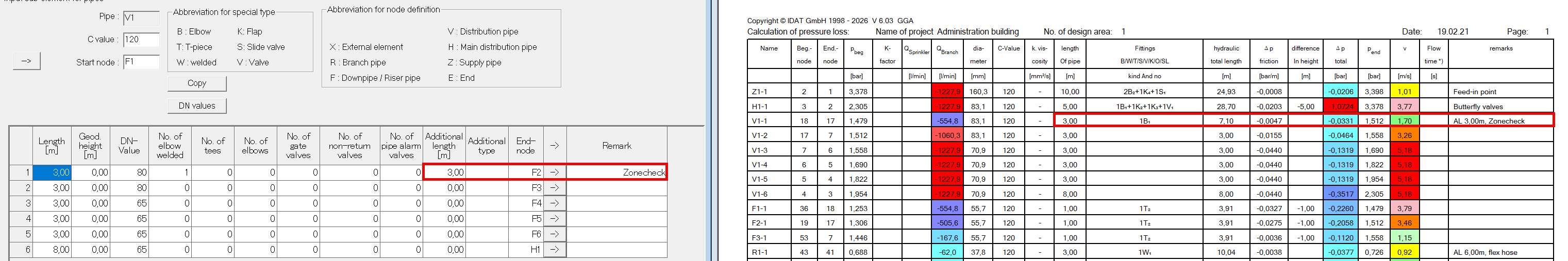

Example of input:

• Copy

Copy sub-elements

• DN Values

Transferring the same DN values to other sub-elements

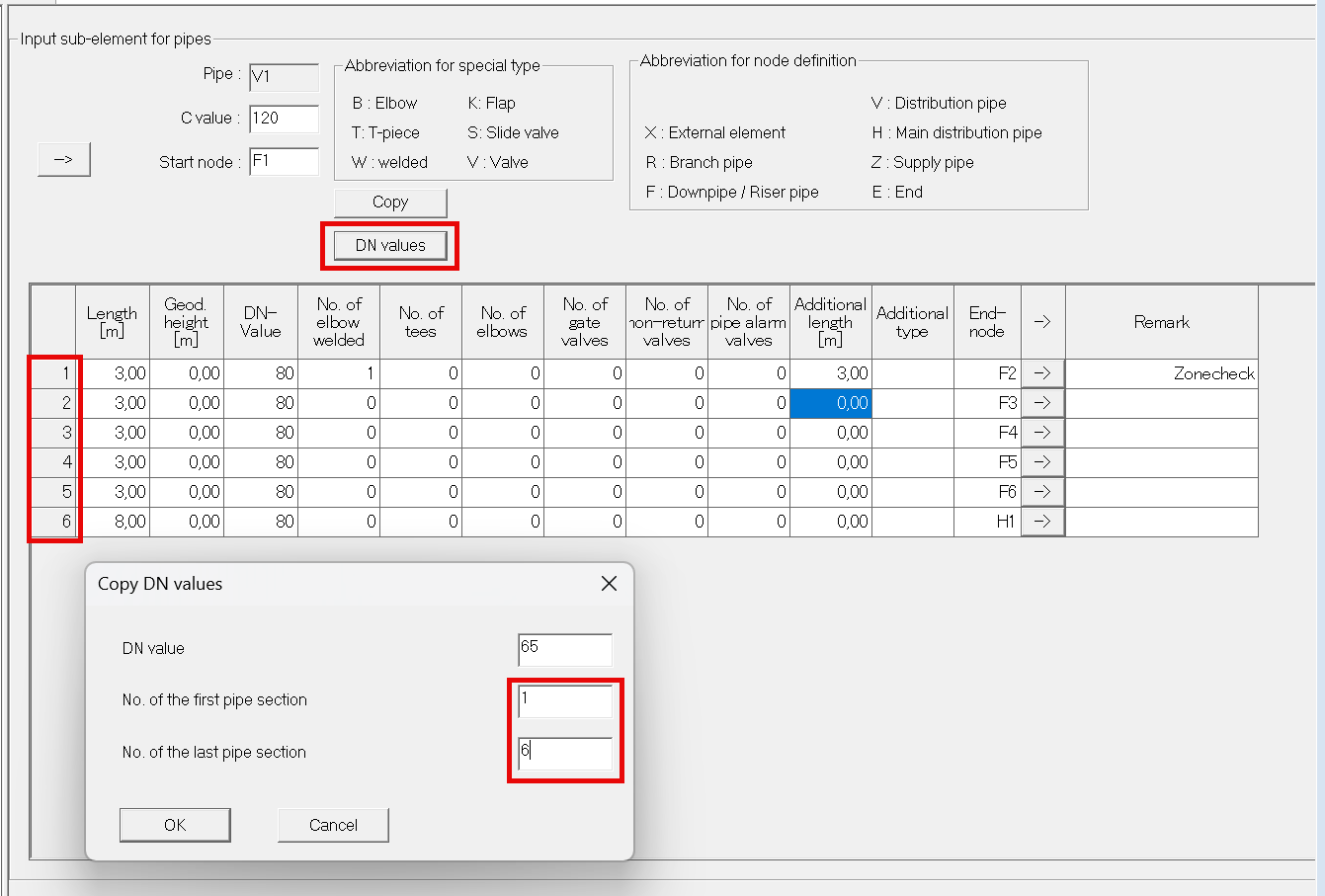

Example:

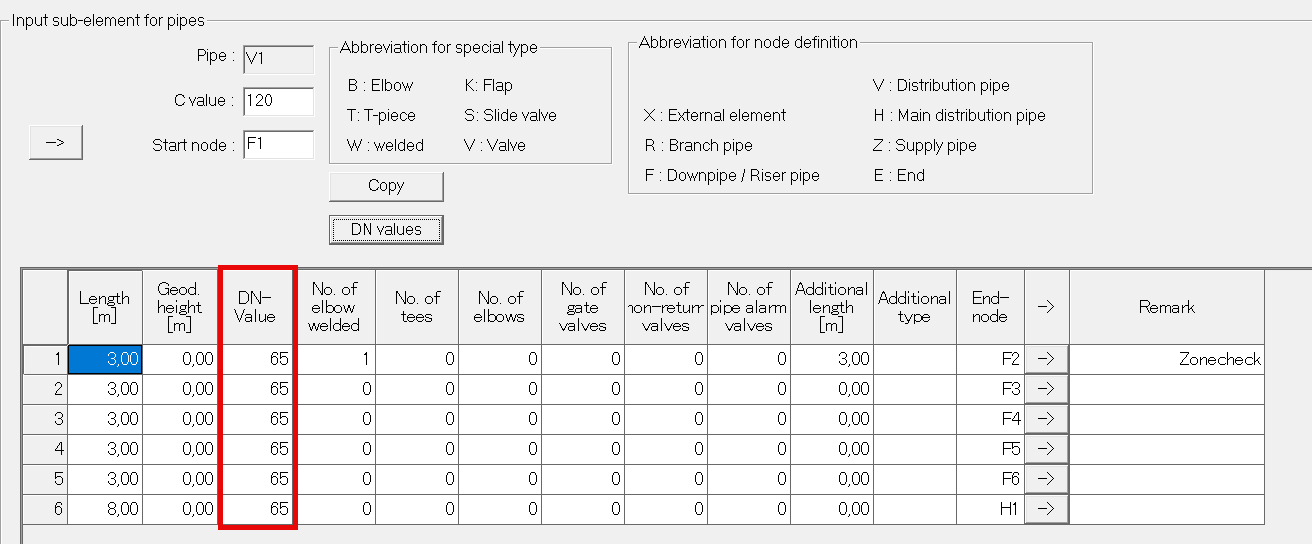

Result:

• Adopting changes to other pipes

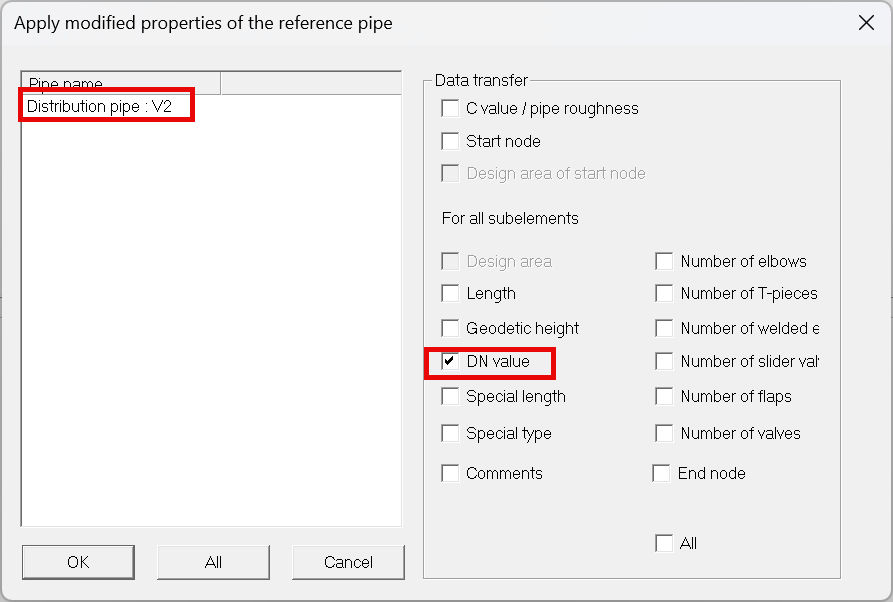

A dialog box appears when the function is applied DN values.

The selected DN value is also adopted by other distribution pipes if you mark the distribution pipes in the top left corner and click OK.

Cancel - Leave dialog without making changes
